Product Details ＋

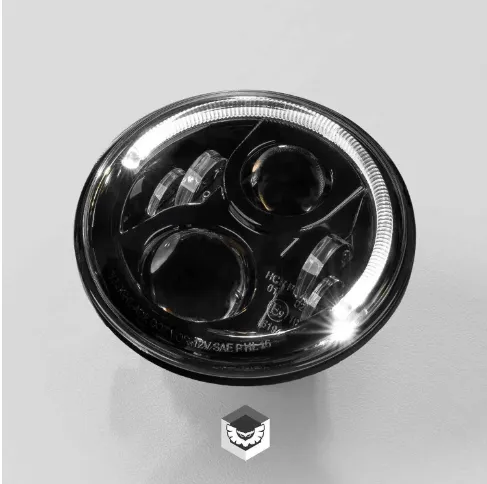

FINALLY, A WORTHY 7" LED HEADLAMP.

You've either heard about or tried the other disaster 7" LED kits on the market. Our Carbon LED Headlight unit is ADR Compliant and features a proper RHD beam geometry. Our CARBON is a complete LED unit that will replace your existing 7" factory headlight unit. Complete with separate High & Low beams as well as a half halo park light, the CARBON is your all-in-one upgrade solution for your motorbike or 4x4 vehicle that runs 7" headlights (list of known compatible models in the description).

PERFORMANCE THAT SURPASSES THE VERY BEST.

The low beam is full of volume and throws out to 141m at 1 Lux. The high beam throws out to 235m at the 1 Lux which is better than many auxiliary lights on the market. The integrated optional halo park light can be wired to ignition or to a dedicated switch to illuminate to offer day-time safety. Anti-Flicker technology for an effortless install.

ADR COMPLIANT.

The CARBON falls within the parameters of ADR making it a 100% legal LED driving light upgrade. No wasting time checking whether or not your vehicle meets the guidelines for retrofitting LED lights, from the get-go you're all set.

THE NITTY GRITTY.

Our CARBON 7 Inch LED Driving Lights should be the first step when improving your motorcycles light output. Complete with High and Low beam as well as a half LED halo ring park light, the CARBON 7" is the perfect replacement for your existing headlight.

KEY PERFORMANCE METRICS

ADR Approved E-Mark CE
Proper Right Hand Drive Beam Geometry
H4 Adaptor
High Beam 1 Lux @ 235m
Low Beam 1 Lux @ 141m

PERFORMANCE BUILD QUALITY

Anodized Polyester Powdercoat

Lexan Polycarbonate (PC) Lens refractor

Die-cast aluminium alloy (ADC12) Heat-Sink

IP67 | Ingress Protection

Shock Proof, Waterproof and UV Shielded

Protected against Reverse Polarity and Voltage / Current surges

Warranty | 2 Years

COMPATIBLE MODELS:

1955-1983 Jeep CJ-5
1976-1986 Jeep CJ-7
1981-1985 Jeep CJ-8
1997-2006 Jeep Wrangler (TJ)
2007-2015 Jeep Wrangler 2-Door (JK)
2007-2015 Jeep Wrangler Unlimited 4-Door (JK)
1982 - 1991 Mitsubishi Pajero (L040)
Land Rover Defender
70 Series Toyota Landcruiser with round headlamp (Needs additional H4 CANBUS to resolve negative switching)
60 Series Toyota Landcruiser with round headlamp (Needs additional H4 CANBUS to resolve negative switching)
Toyota FJ-40/45/47 (Needs additional H4 CANBUS to resolve negative switching)
GQ Patrol
Harley Davidson Motorcycles
Mercedes Benz G Wagon
Kenworth Trucks with 7 inch round headlight

TECH SPECS

LED	High Beam: 2 x 10w XML-2 LED Low Beam: 2 x 15w LED Park Light: 2 x 1.5w Osram
RAW LUMENS	High Beam: 1800Lm Low Beam: 1250Lm Park Light: 150Lm
AMP DRAW	High Beam: 2.4a @ 13.6v Low Beam: 1.6a @ 13.6v Park Light: 0.2a @ 13.6v
LIFESPAN	50,000 Hours
INGRESS PROTECTION	IP67
OPERATING TEMPERATURE	-30°C~ 60°C
LENS MATERIAL	LEXAN Polycarbonate
COLOUR TEMP	5700K
VOLTAGE COMPATIBILITY	12v & 24v
PEAK BEAM DISTANCE @ 1 LUX	High Beam: 235m Low Beam: 141m Park Light: 8m
WEIGHT (each)	1.140kg each
DROP IN REPLACEMENT FOR	#6014, 6015, 6016, H6024 and Par 56 headlamp designs
ADR COMPLIANCE	ADR 46/00 ADR 49/00
