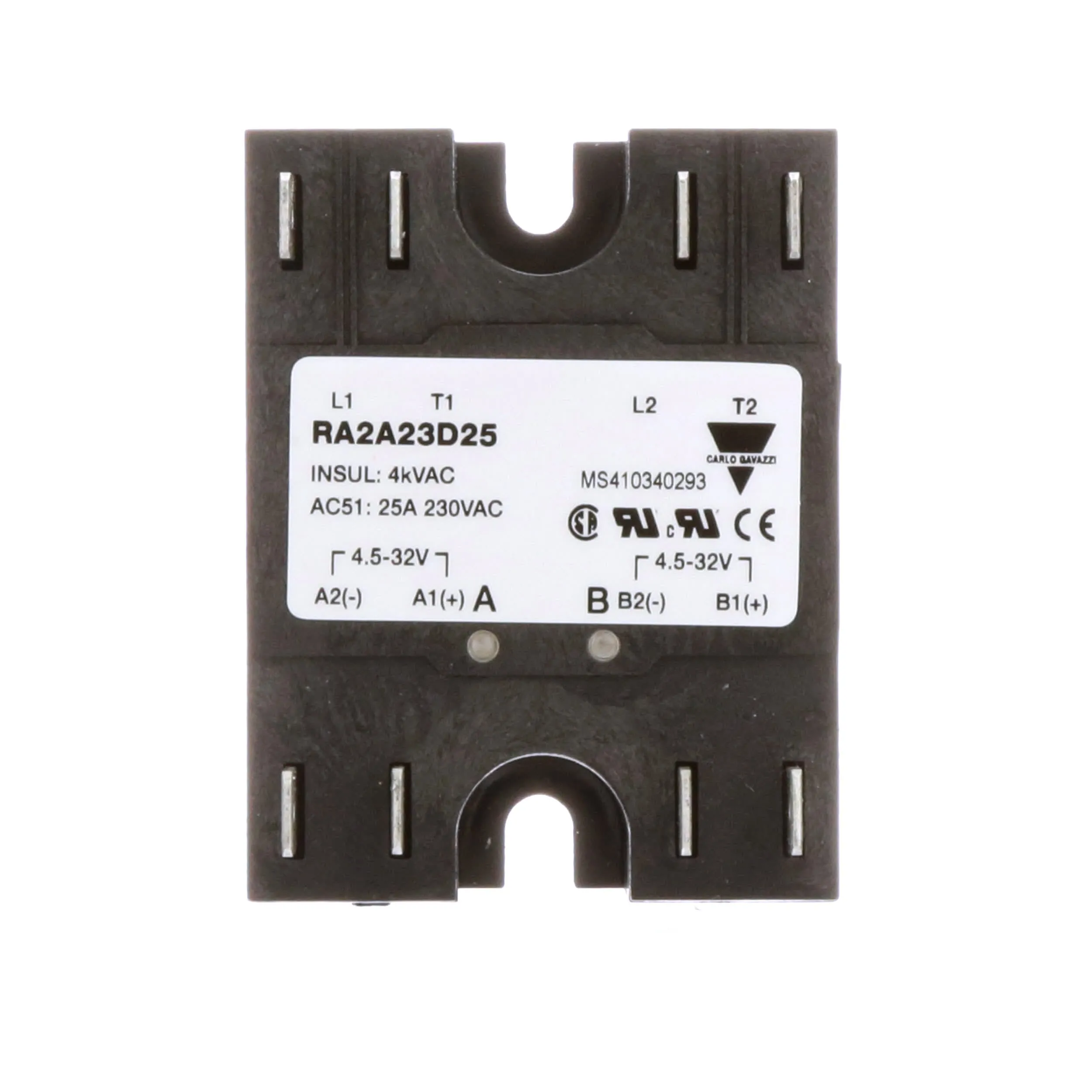

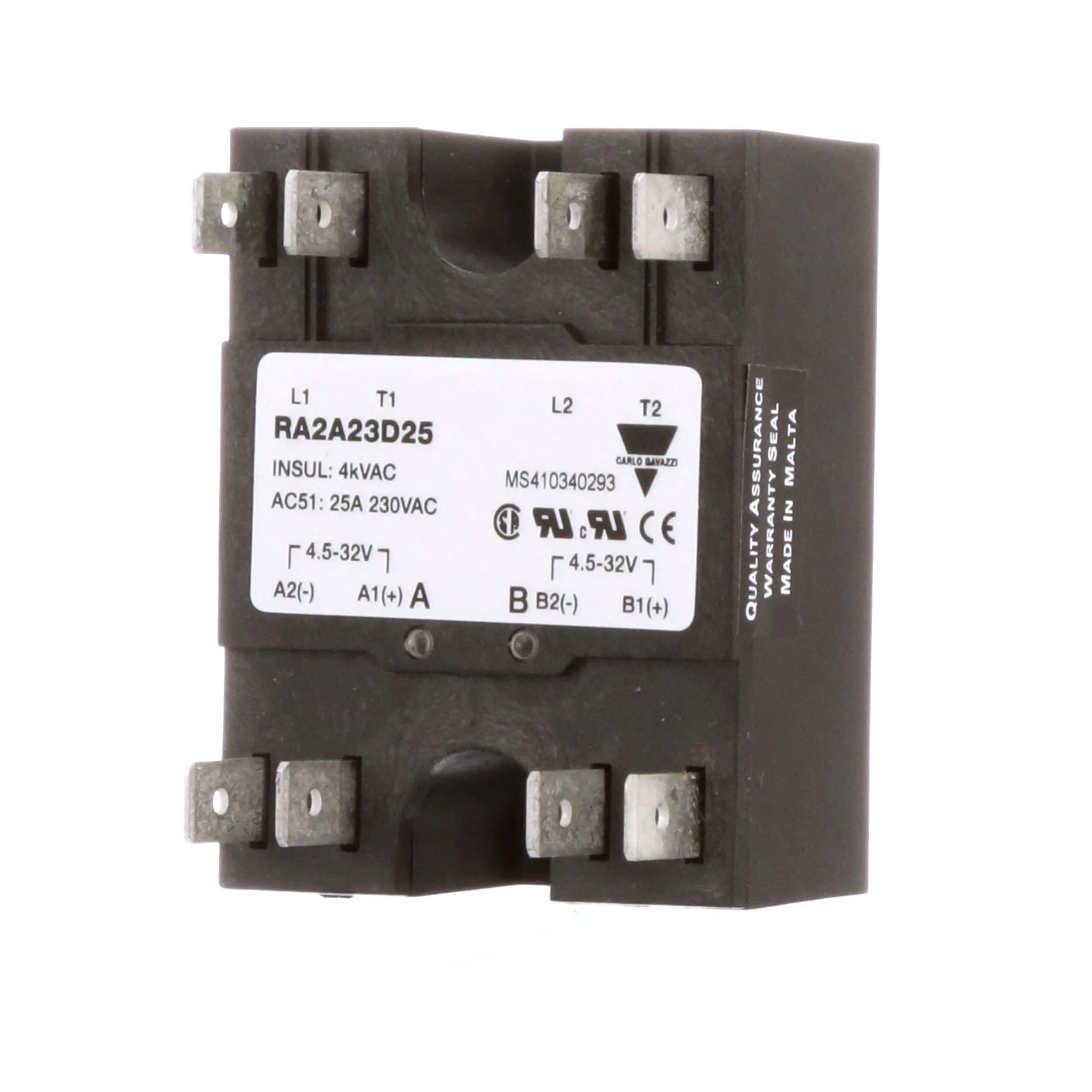

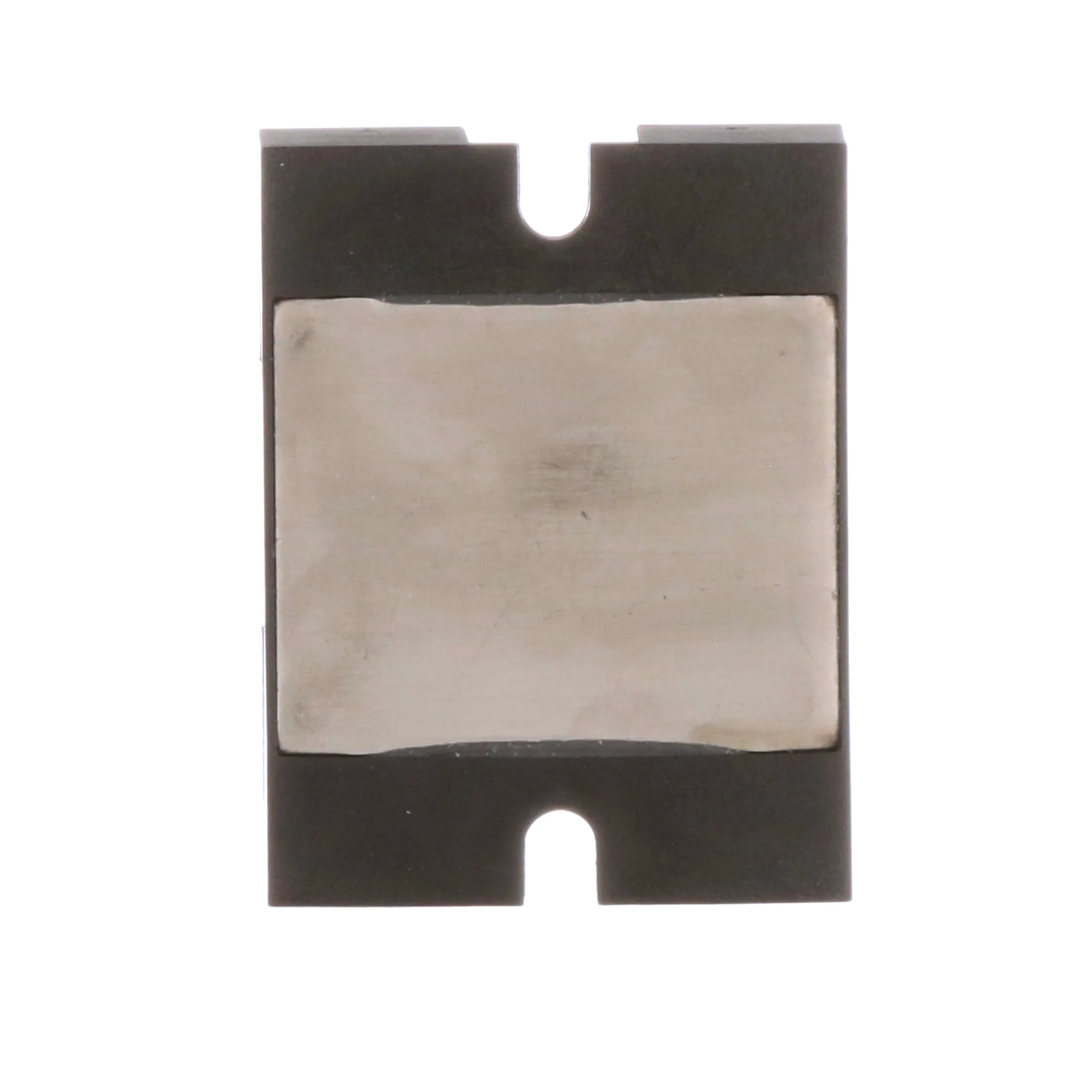

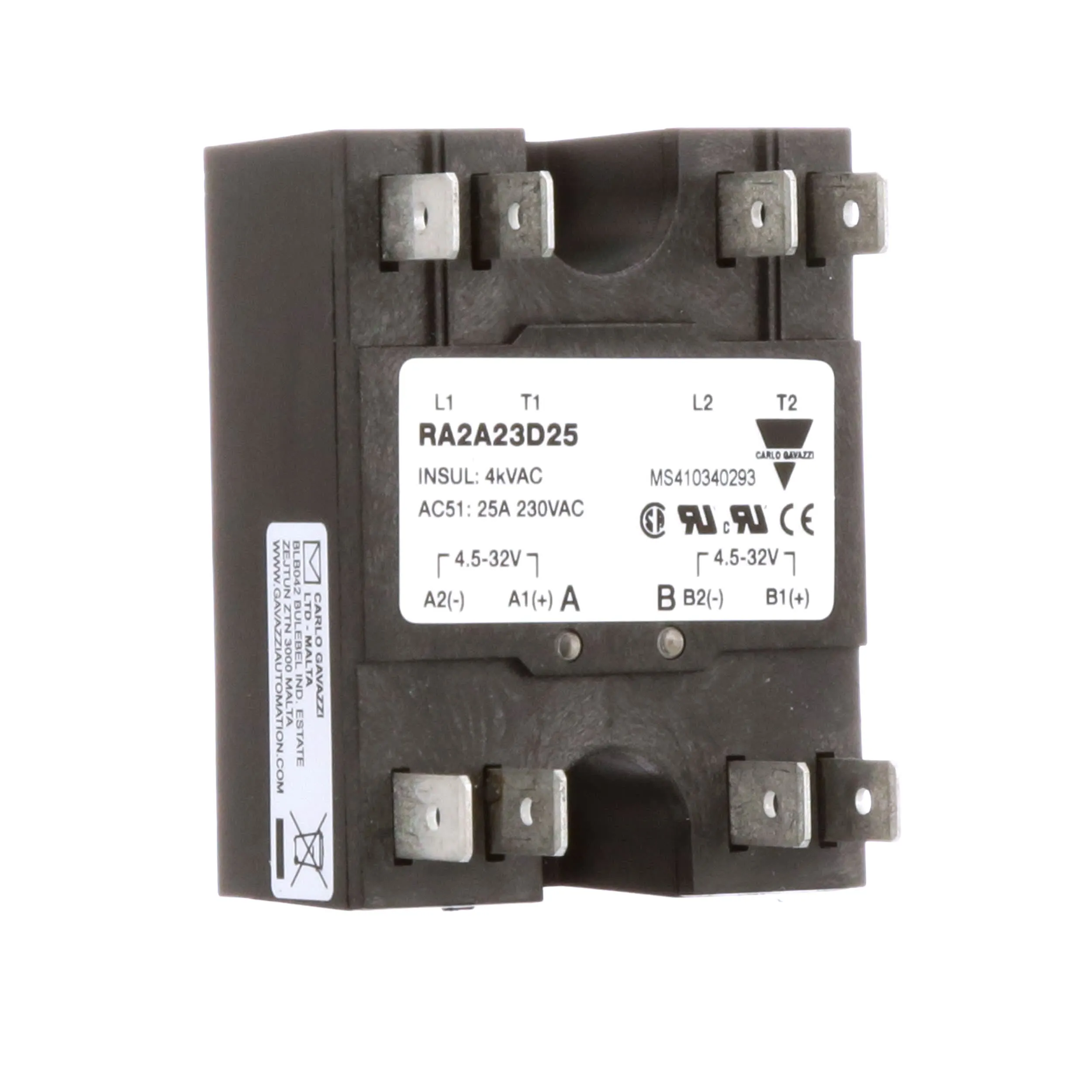

Name: Carlo Gavazzi, Inc. RA2A23D25
SKU: 556383

Product Details ＋

Product Attribute	Attribute Value
Contact Form	DPST-NO
Current Rating	25 A
Function	Zero-Switching
Mounting Type	Panel Mount
Number of Pins	8 Pin
Product Description	This 2-pole industrial relay minimizes the space requirements in a control cabinet without compromising performance. By applying an input voltage on control A, the corresponding output semiconductor is activated at the first zero crossing of the line voltage. The same applies to control B. LEDs indicate the control status of each pole. The optimized design is free of moulding mass to reduce internal mechanical stress. The RA2A..M types have been specially customized for demanding inductive loads.
Product Header	Zero Switching Solid State Relay
Relay Type	Solid State Relay
Series
Standards	cUL ; UL ; CSA ; CE
Termination	QC Tabs
Voltage Rating	230 VAC
Voltage, Control	32 VDC

Overview

Zero switching solid state relays offering two isolated outputs, which can be controlled by separate 4.5 to 32 VDC control signals, which are input via fast-on terminals. Up to 1200 Vp non-repetitive peak voltage. Two LEDs indicate the control status of each pole. Normally open, back-to-back SCR outputs are utilized in the output circuitry to reduce leakage current. UL and CUR recognized and CE compliant.

25 or 40 Amp SCR Outputs

4.5 to 30 VDC Control Voltage

Two Outputs Can Be Controlled Separately and Are Isolated from One Another

Two Leds, One for Each Input Signal

Easy Installation Via Fast-On Terminals
