Name: Fluke Amprobe At-6010, Advanced Wire Tracer W/ Receiver, Transmitter, Soft Carrying Case (item no. 5044625)
SKU: 548212

Product Details ＋

(item no. 5044625)

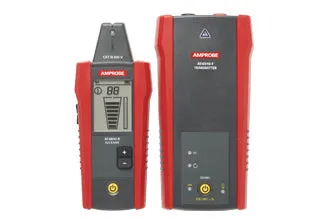

Easily and accurately locate wires, breakers, and fuses with the AT-6010 Advanced Wire Tracer. When the Transmitter is connected to the circuit (Energised or de-energised, up to 600 V AC/DC in Category I through Category III electrical environments), the Receiver easily detects the transmitted signal in the wires or cables behind walls, ceilings and floors. Work safely on energised circuits without the need to take equipment offline. The Transmitter also features high signal mode for general tracing and a loop mode designed specifically for locating shorts, as well as two optimal tracing frequencies that are automatically activated based on the detected voltage. The AT-6010 can be combined with the CT-400 Signal Clamp (optional accessory) for applications where access to circuit contacts is limited or where users are not able to connect the Transmitter to the circuit through test leads.

Features

Traces wires in walls, ceilings, floors and corners
Locates breakers and fuses
Pinpoints shorts and opens
High resolution 2.5"" TFT LCD black & white display
Simple one button Transmitter operation
Two Transmitter signal modes
1. "High Signal" mode for normal circuits
2. "Loop" mode for closed loop de-energized circuits
Two automatically selected frequency modes for reliable tracing on energised and de-energized circuits
Comes with custom Amprobe soft carrying case, test leads and accessories
Rated CAT III 600 V for work directly on an energised circuit without the need to take equipment offline
Compatible with optional Signal Clamp (CT-400) clamp-on attachment

Specifications

Features	AT-6010-R Receiver	AT-6010-T Transmitter
Measurement category	CAT III 600 V
Operating voltage/current	0 to 600 V
Operating frequency	Energized: 6.25 kHz
Hazardous voltage detection	N/A	> 30 V AC/DC
Signal indications	Numeric bar graph display and audible beep	LEDs
Response time	Tip Sensor (Energized/De-energized): 500 ms Battery voltage monitoring: 5 sec	Line voltage monitoring: 1 sec Battery voltage monitoring: 5 sec
Current output of signal (typical)	N/A	Energized circuit: HI mode: 60 mA RMS De-energized circuit: HI mode: 130 mA RMS Loop mode: 160 mA RMS
Signal voltage output (nominal)	N/A	De-energized circuit: HIGH: 33 V RMS, 140 Vp-p With CT-400: Loop model: 31 V RMS, 120 Vp-p
Range detection (open air)	Tip Sensor (Energized): Max distance via air: up to 20 ft (6.1 m) Pinpointing: approx. 1.97 in (5 cm) Tip Sensor (De-energized): Max distance via air: up to 14.7 ft (4.5 m) Pinpointing: approx. 1.97 in (5 cm)	N/A
Display size	LCD 2.5 in (6.35 cm)	N/A
Display dimensions (W x H)	1.45 x 1.93 in (36.72 x 48.96 mm)	N/A
Display type	Segment LCD	LEDs
Display color	Black and white	Operating mode LEDs: red Battery status LED: red
Booting time	< 3 sec	< 2 sec
Backlight	Yes	N/A
Operating temperature	-4 °F to 122 °F (-20 °C to 50 °C)
Operating humidity	45%: -4 °F to <50 °F (-20 °C to <10 °C) 95%: 50 °F to <86 °F (10 °C to <30 °C) 75%: 86 °F to <104 °F (30 °C to <40 °C) 45%: 104 °F to 122 °F (40 °C to 50 °C)
Storage temperature and humidity	-4 °F to 158 °F (-20 °C to 70 °C), <95% RH
Operating altitude	0 to 6561 ft (2000 m)
Transient protection	N/A	6.00 kV (1.2/50μS surge)
Pollution degree	2
IP rating	IP 52	IP 40
Drop test	3.28 ft (1 m)
Power supply	4 x AA (alkaline)	8 x AA (alkaline)
Power consumption (typical)	70 mA	Hi mode: 70 mA Loop mode with Clamp: 90 mA Consumption without signal transmission: 10 mA
Battery life	Approx. 25 h	Hi mode: approx. 25 h Loop mode: approx. 18 h
Low battery indication	Yes
Fuse	N/A	1.6 A, 700 V, fast-acting, Ø 6x32mm
Dimensions (L x W x H)	Approx. 7.2 x 2.95 x 1.69 in (183 x 75 x 43 mm)	Approx. 7.2 x 3.66 x 1.97 in (183 x 93 x 50 mm)
Weight	Approx. 0.6 lb (0.27 kg)	Approx. 1.25 lb (0.57 kg)
Certifications

Refer to user manual for accessory specifications

Kit Contains	AT-6010
AT-6010-R Receiver	•
AT-6010-T Transmitter	•
TL-6000-INTL Test lead and accessory kit*	•
CC-6010 Soft carrying case	•
User Manual	•
Quick Reference Guide	•
1.5 V AA (IEC LR6) Battery	12
