Product Details
＋

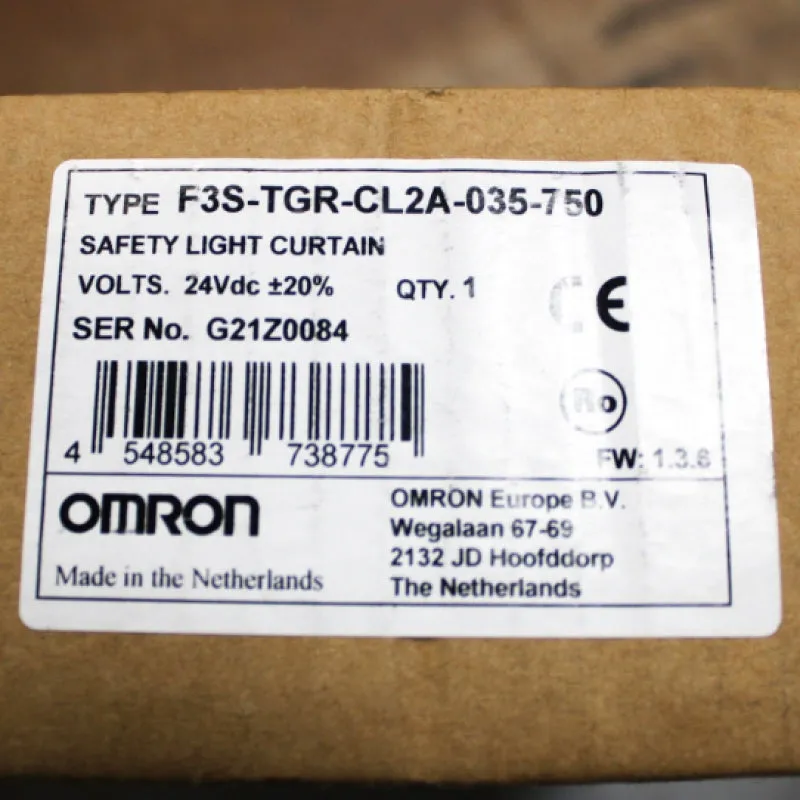

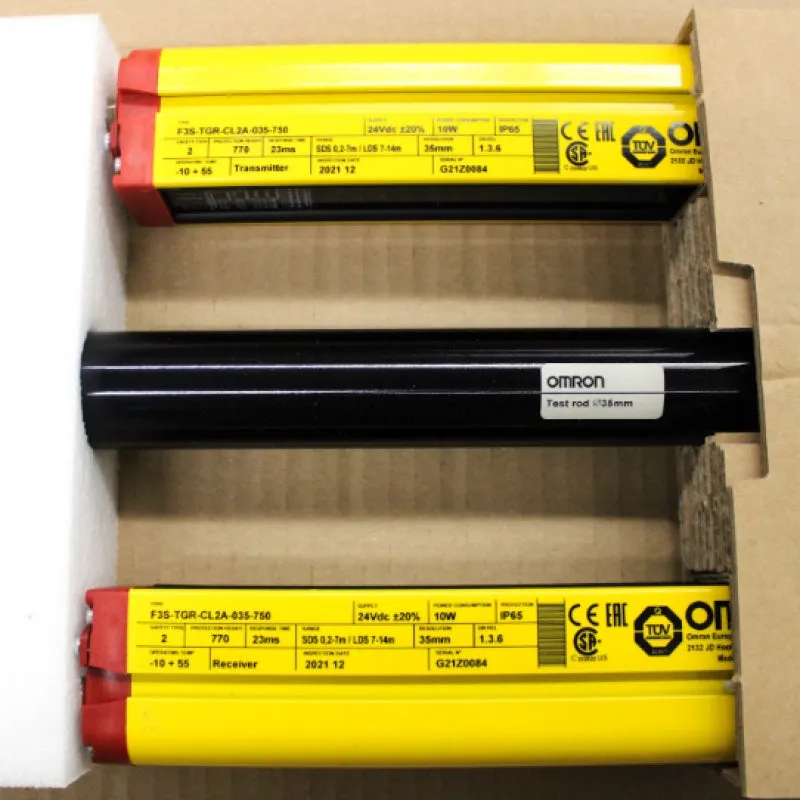

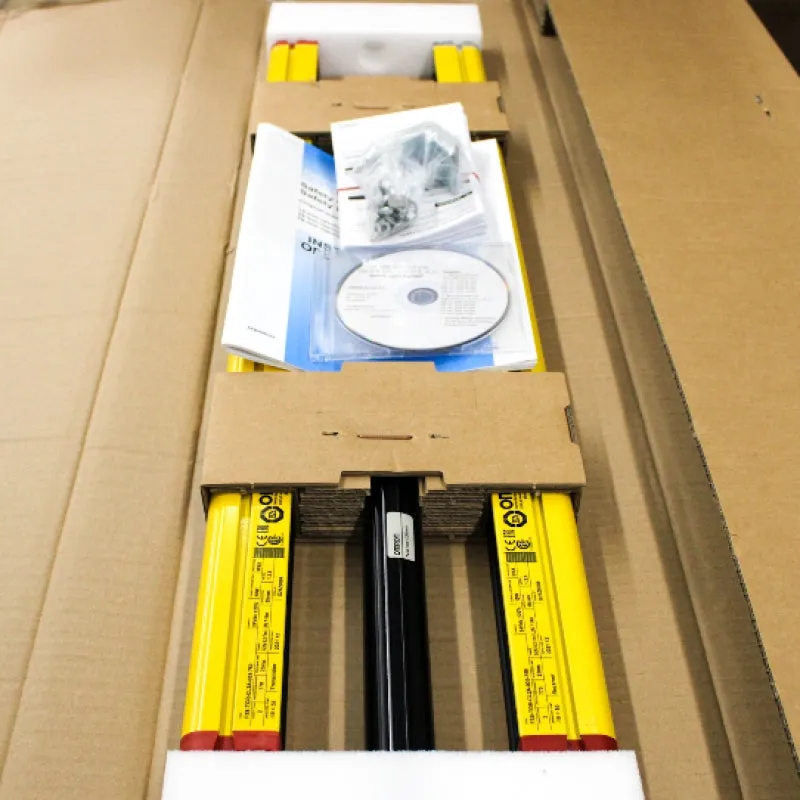

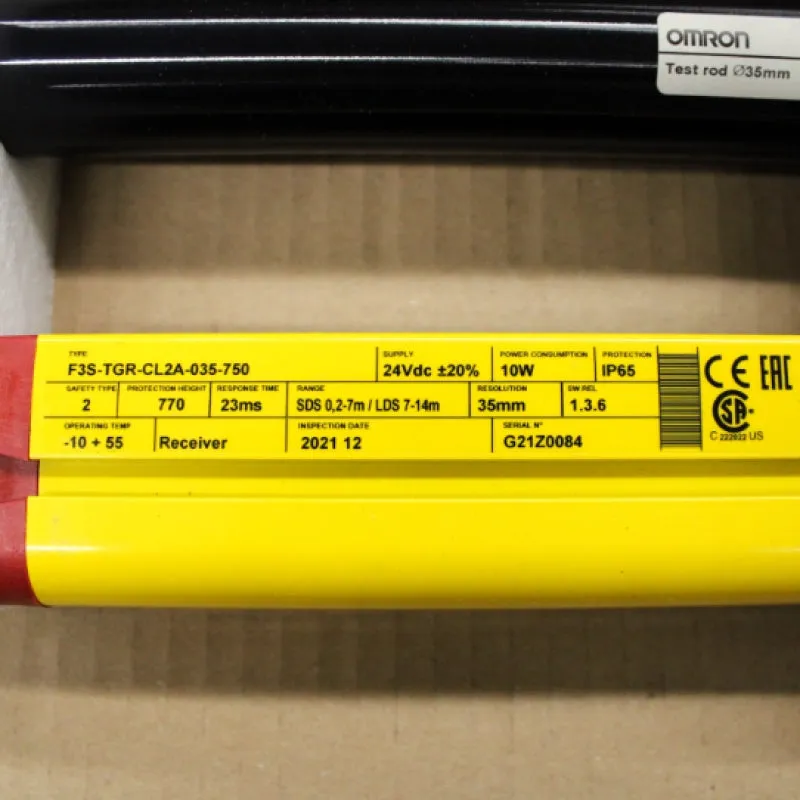

This is an Omron 2 x PNP 14ms 24V 250mA IP65 F3S Safety Light Curtain F3S-TGR-CL2A-035-750. It comes as pictured and does not include any additional parts or accessories.
Specifications:
- Series F3S-TGR-CL
- Beam Resolution 35mm
- Component Type Receiver, Sender
- Safety Type 2
- PL EN ISO 13849-1 c
- Number of Beams 2
- Protective Height 770mm
- Minimum Scanning Distance 0.2m
- Maximum Scanning Distance 14m
- Maximum Response Time 103 ms
- Supply Voltage 24 V dc
- Height 48mm
- Length 805mm
- Features Auto Reset, Blanking, Interlock With Manual Reset, Muting, Preset Function
- Dimensions 805 x 37 x 48 mm
- Application Finger, Hand
- Terminal Type M12 Connector
- Width 37mm
