Product Details
＋

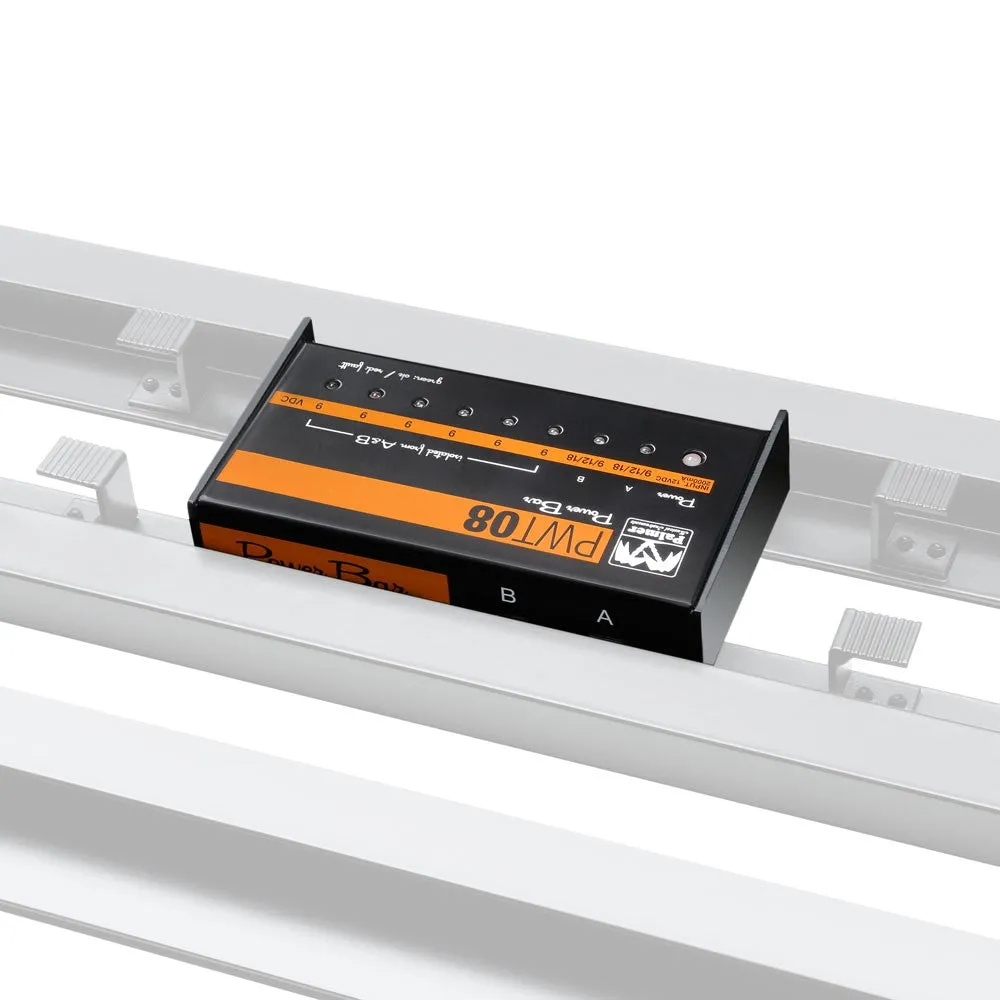

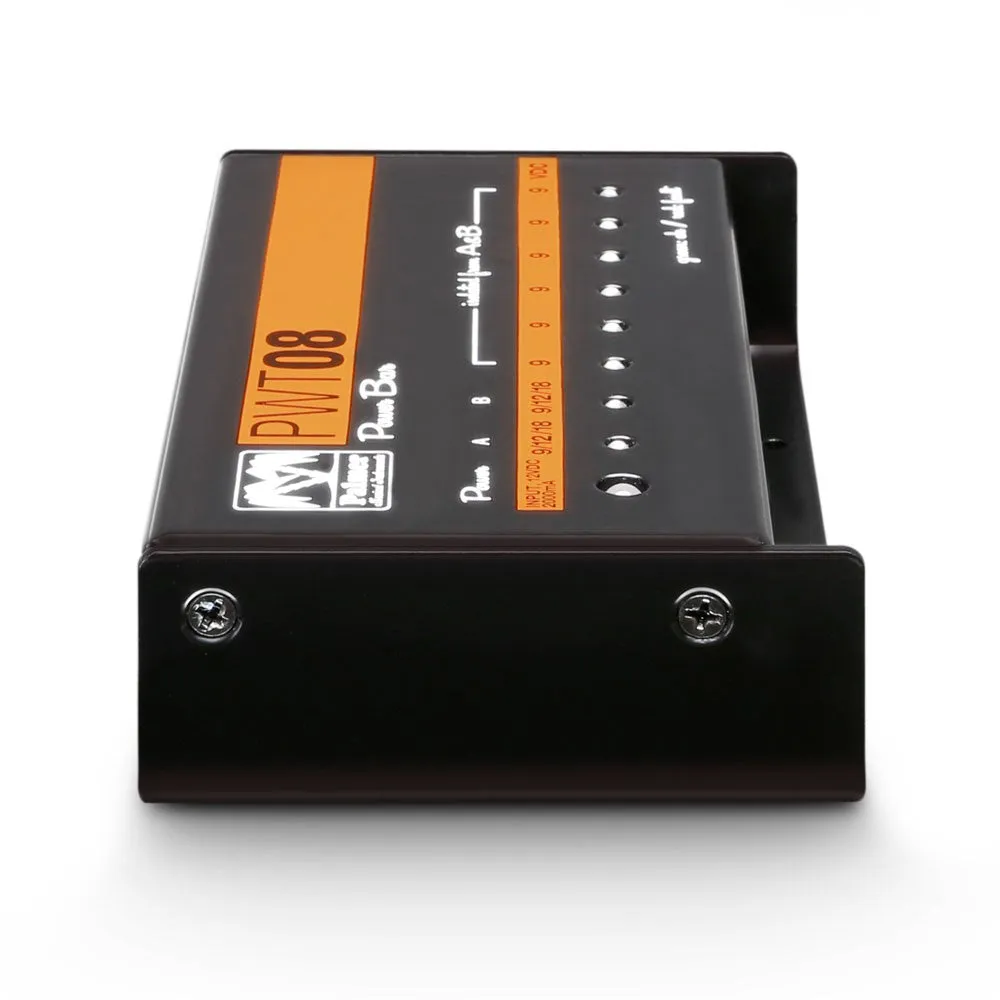

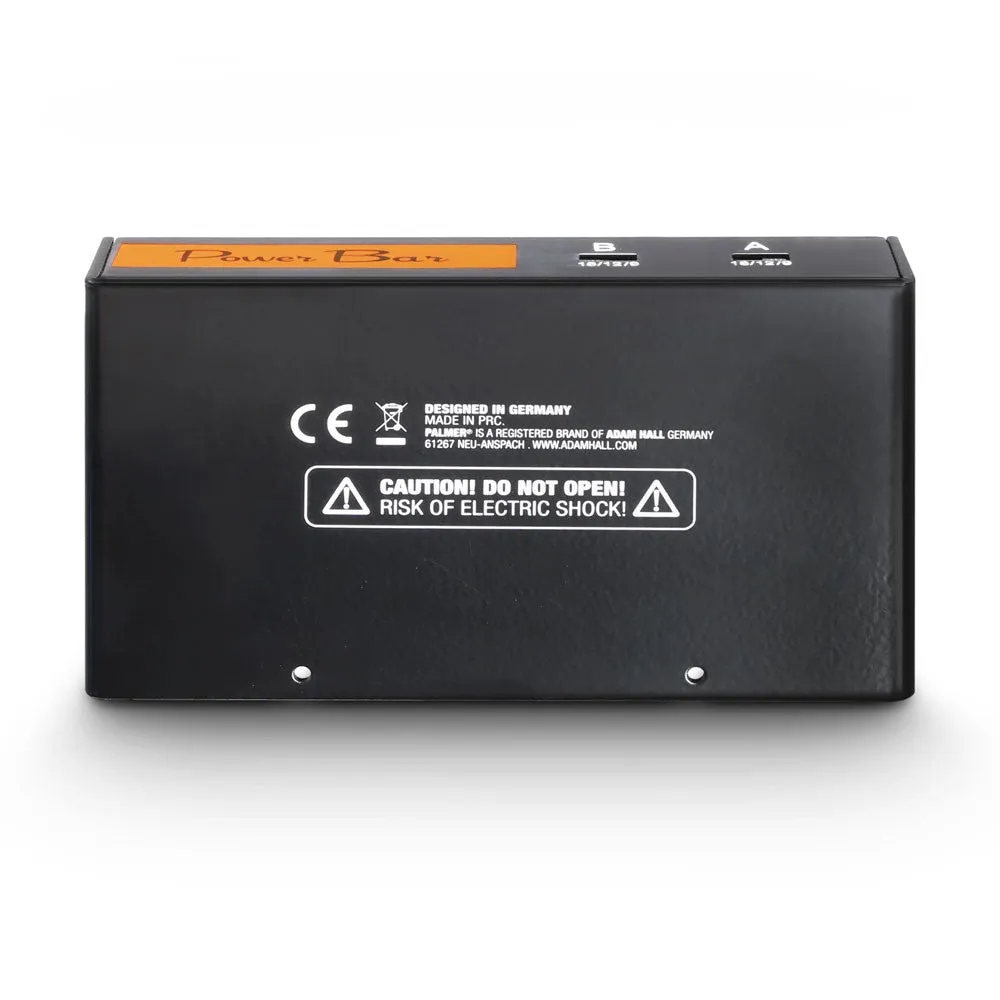

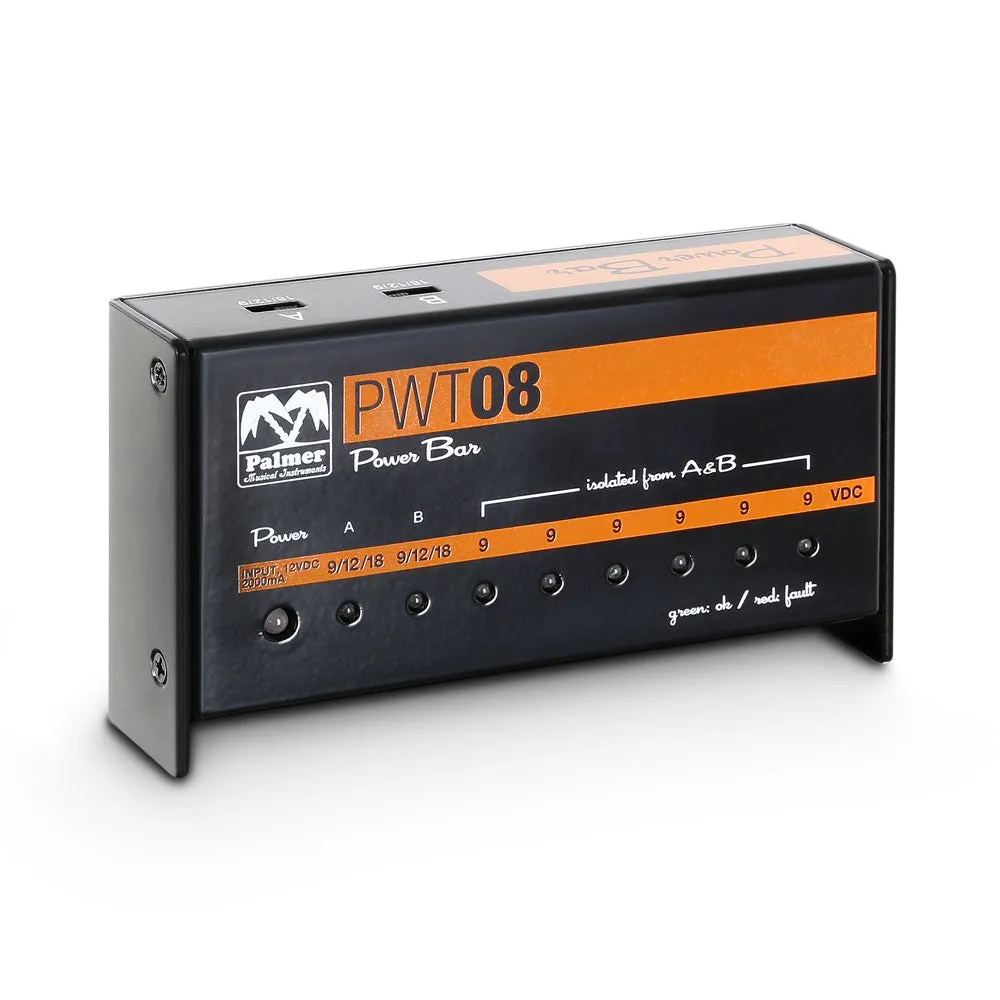

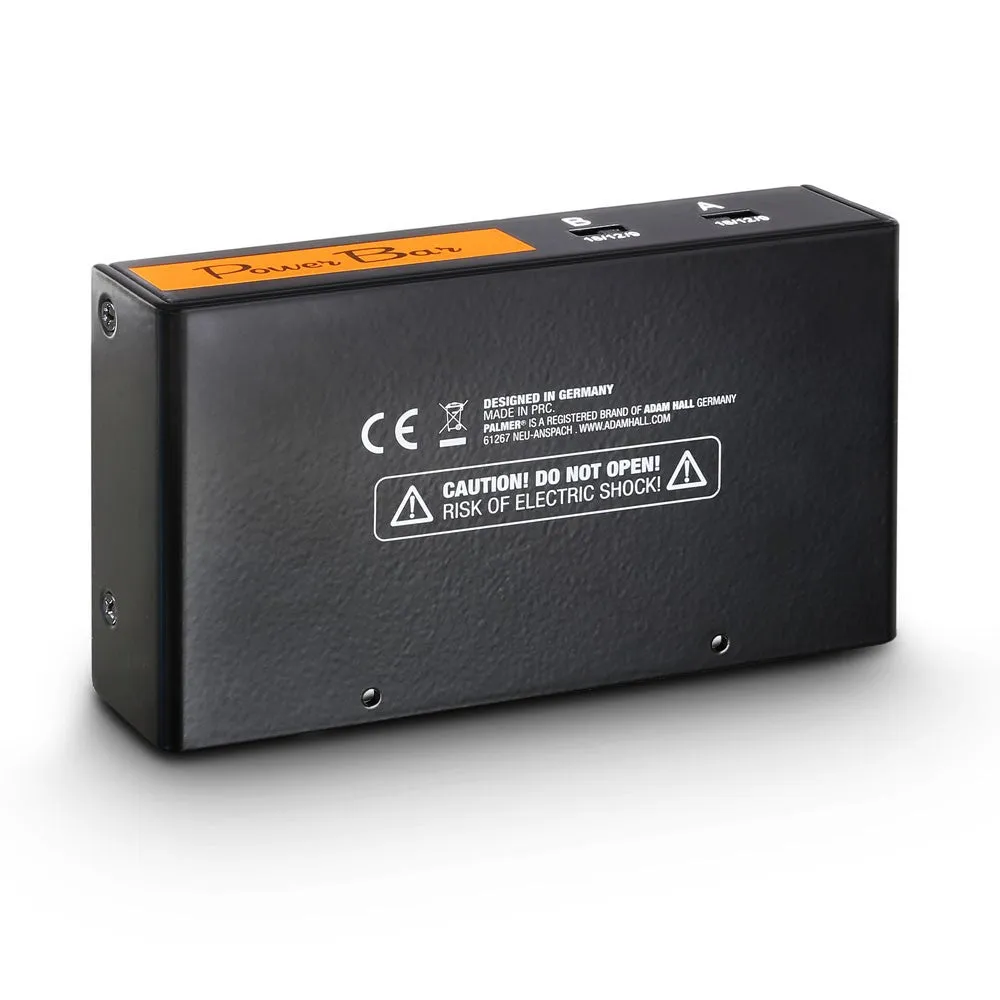

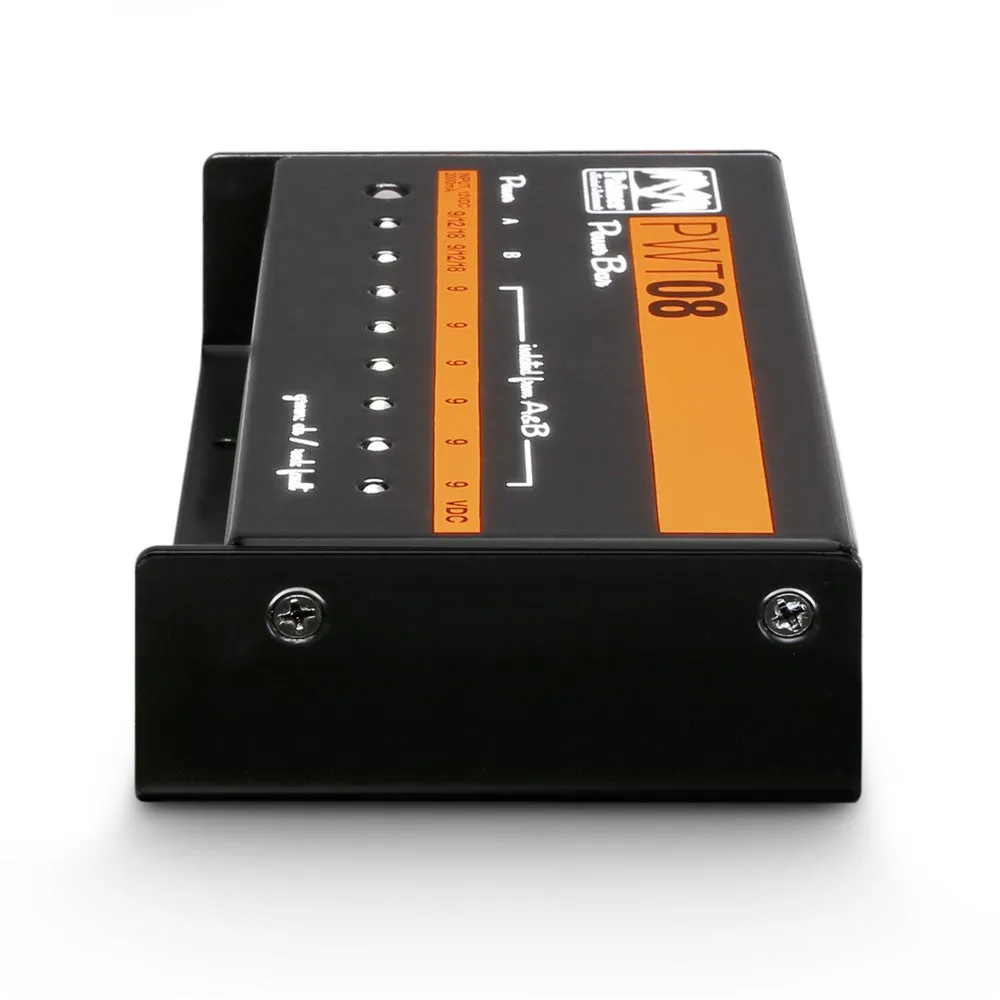

The PWT 08 is a universal pedalboard power supply with huge 2,000 mA output capacity and 8 standard center negative outlets. Two of these are switchable to 9, 12 or 18 volts, and with the included Y cable they can be combined to a single outlet for 21, 24, 30 or 36 volts maximum output. They are isolated from each other and the remaining outlets. Featuring short circuit and overload protection, the PWT 08 is fully regulated to deliver constant voltage. The unit sports a power on LED, bi-color outlet status LEDs and comes with a set of DC cables and dedicated mains adapter. The PWT 08 is the ideal choice if you have just one or two power hungry pedals or 9 volt effects that can be run on higher DC currents for more dynamics and headroom.
- Fully regulated universal pedalboard power supply

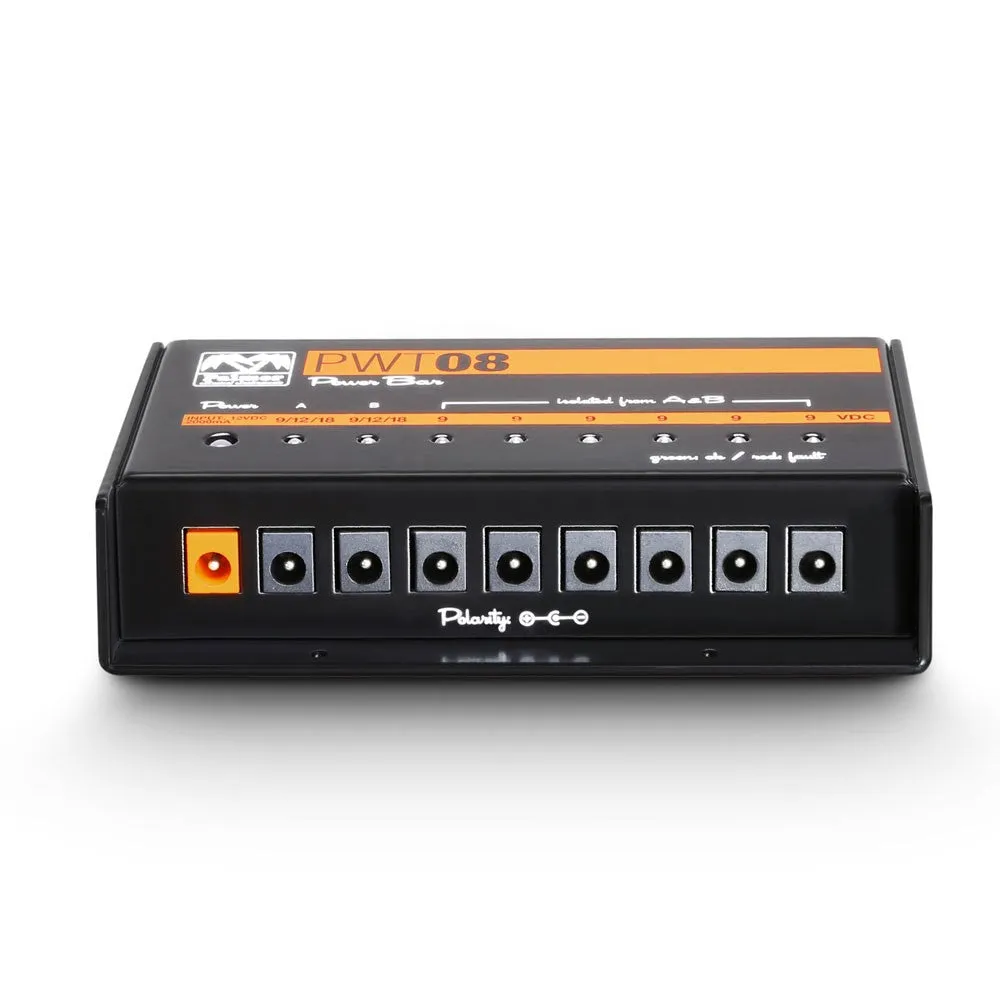

- 8 standard center negative outlets with 2,000 mA output total

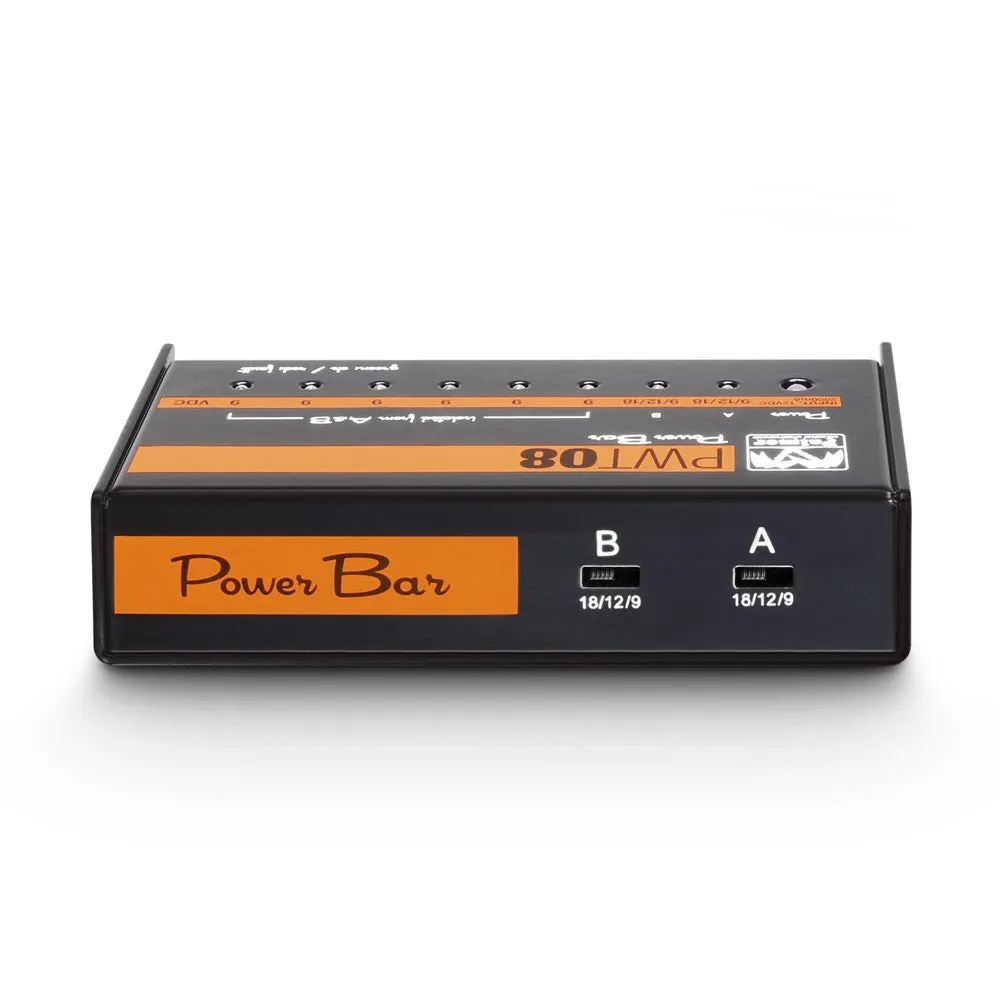

- Two 9, 12 or 18 V switchable outputs
- Short circuit and overload protection for each outlet

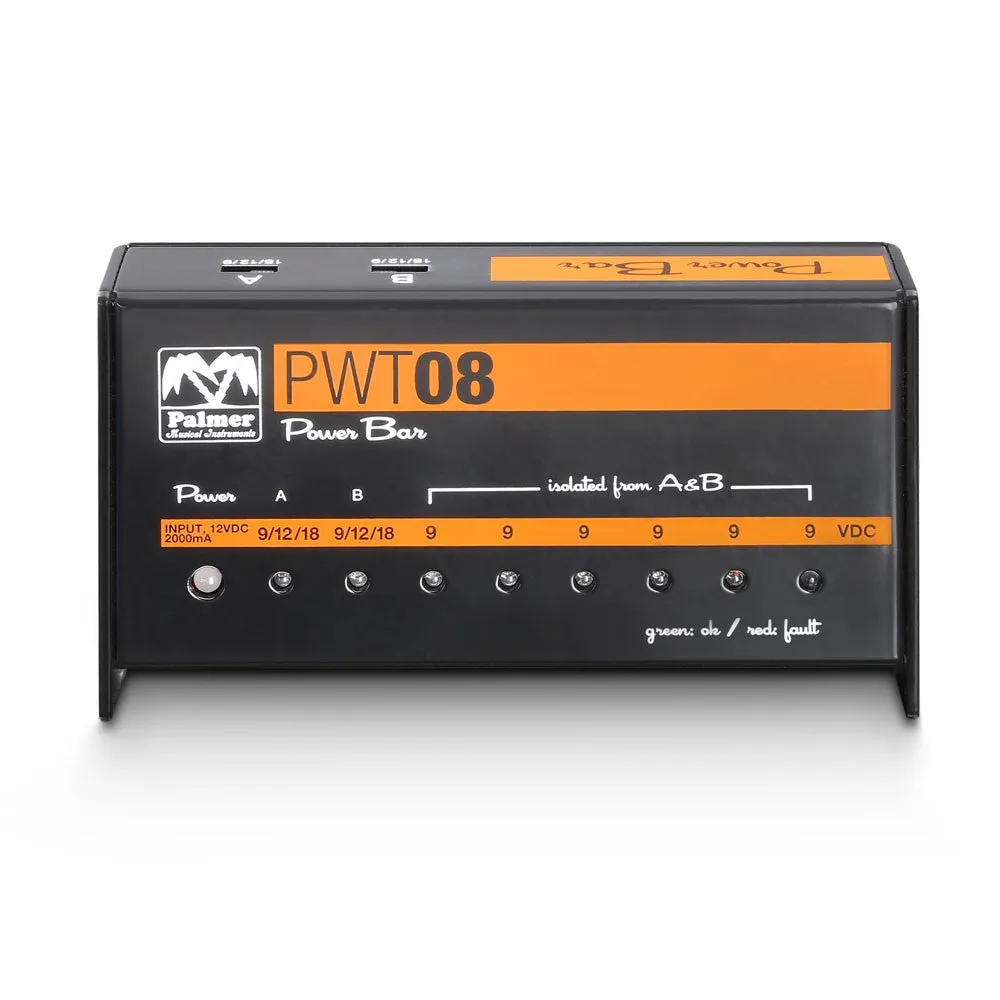

- Bright power and outlet status LED indicators

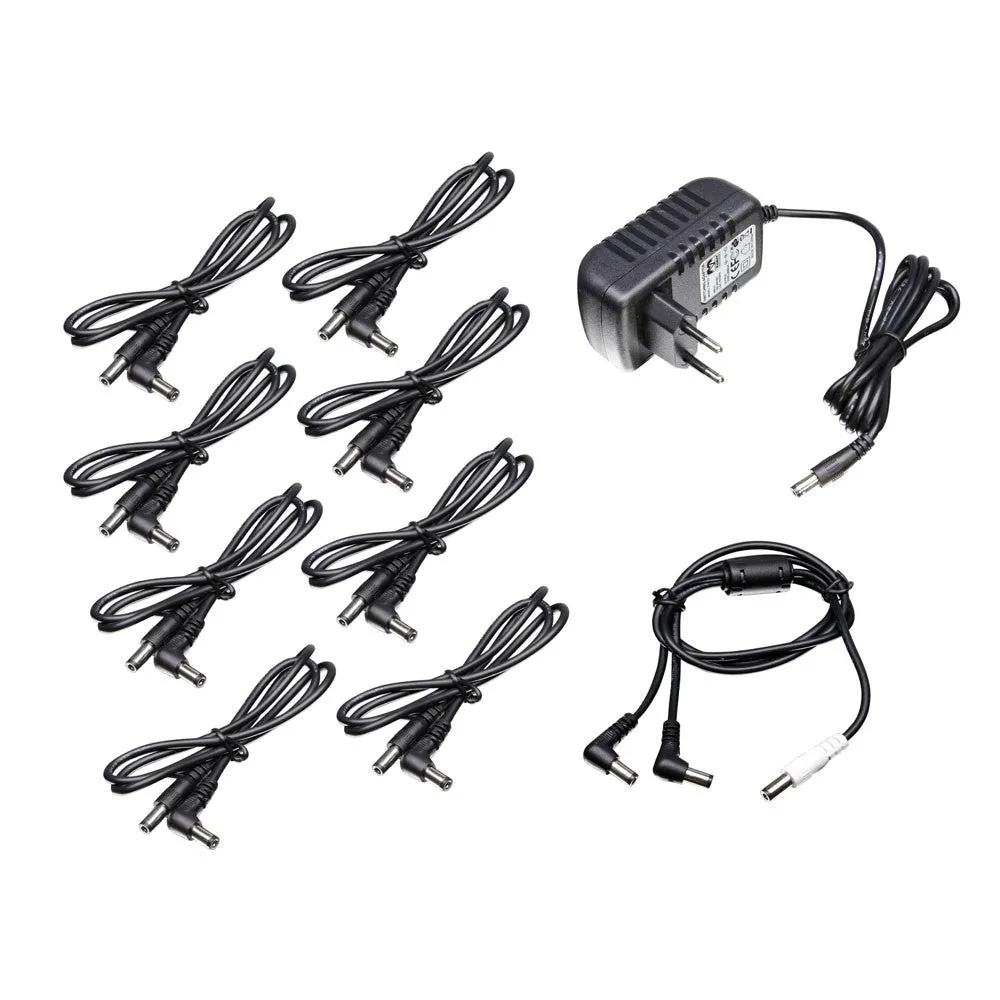

- DC cables, Y cable and mains adapter included
| Product type | Power Supplies |
| Mains connector | Plug-in power supply |
| Input voltage | 100 - 250 V |
| Outputs | 8 |
| Output connectors | 2.1 x 5.5 mm |
| Output voltage | 12 V , 18 V , 9 V |
| Max. output current | 2000 mA A |
| Isolated outputs | Yes |
| Polarity | Center negative |
| Cord length | 25 - 50 cm |
| Indicators | Fault , Power |
| Controls | Output voltage selector |
| Width | 140 mm |
| Depth | 80 mm |
| Height | 32 mm |
| Weight | 0,3 kg |
| Features | 8 x DC cable, 1 x merge cable |
