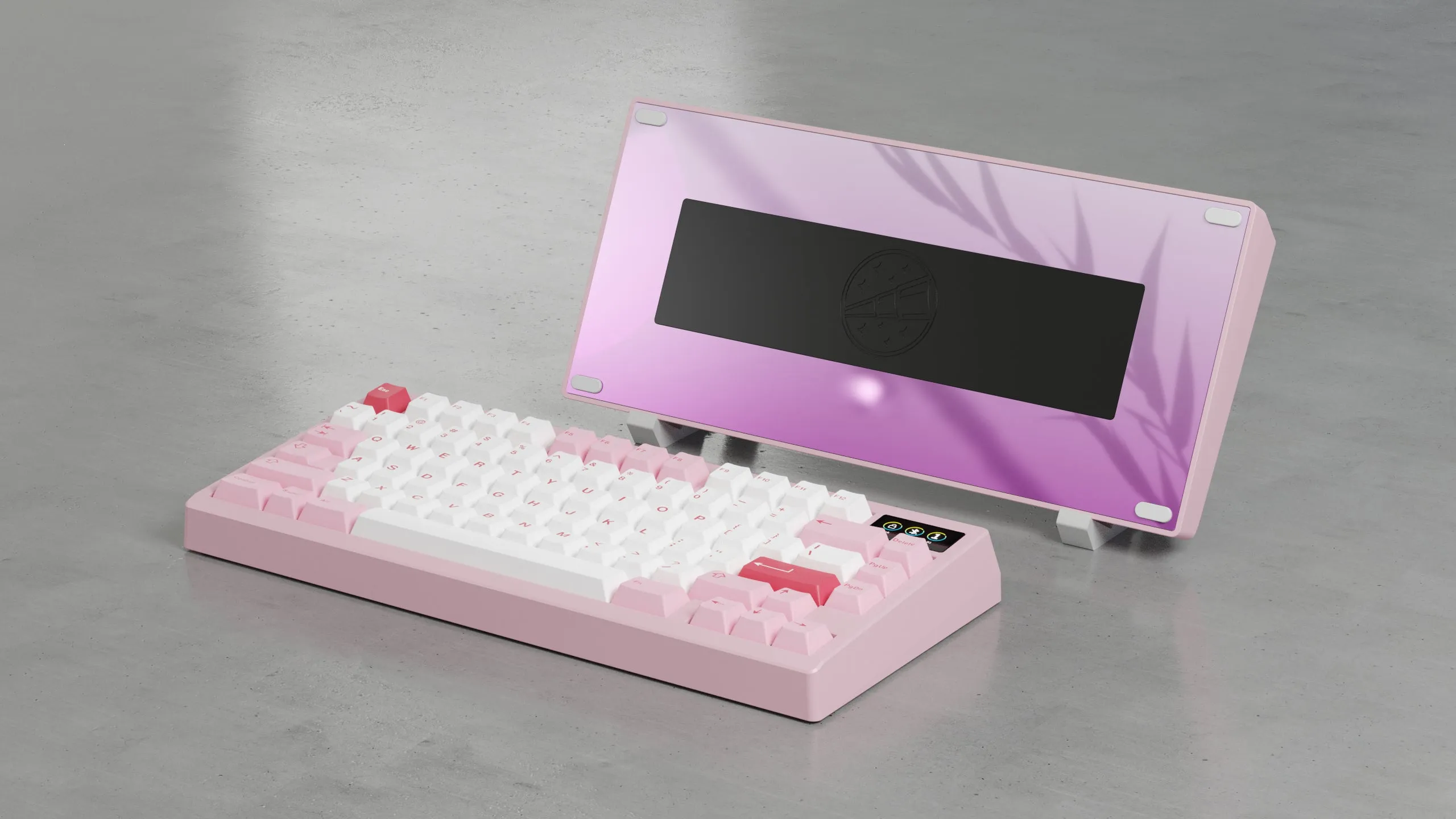

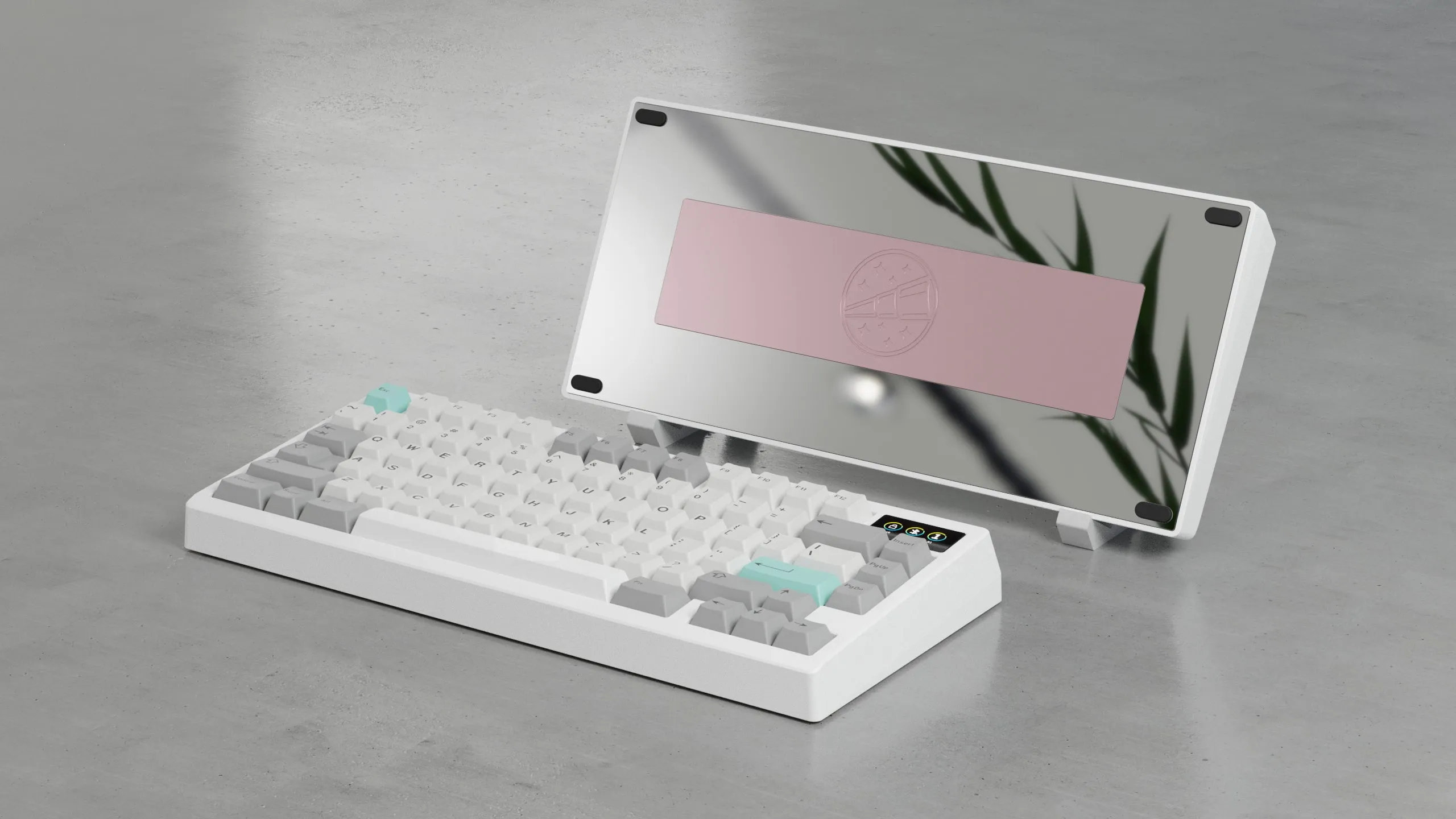

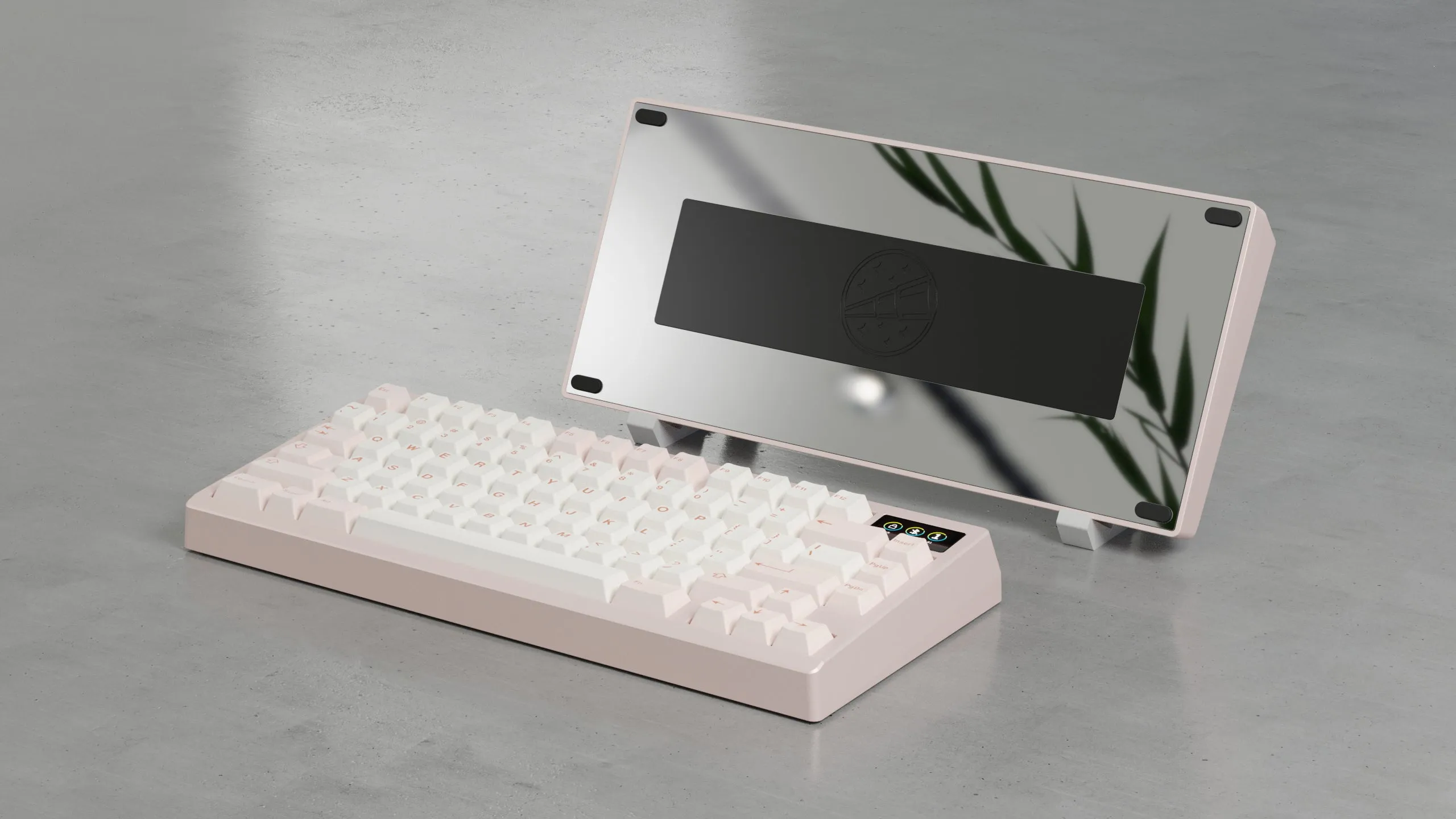

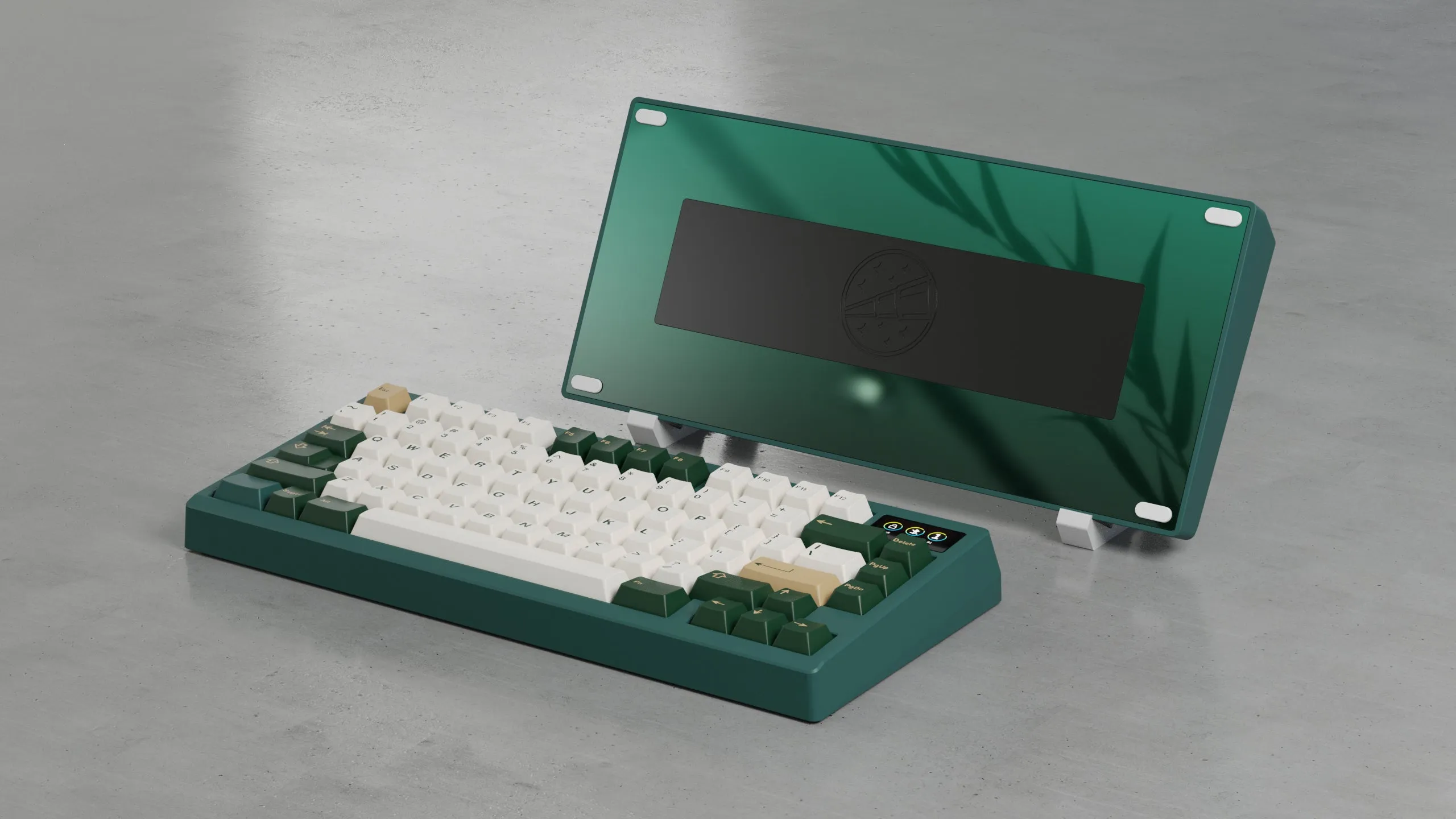

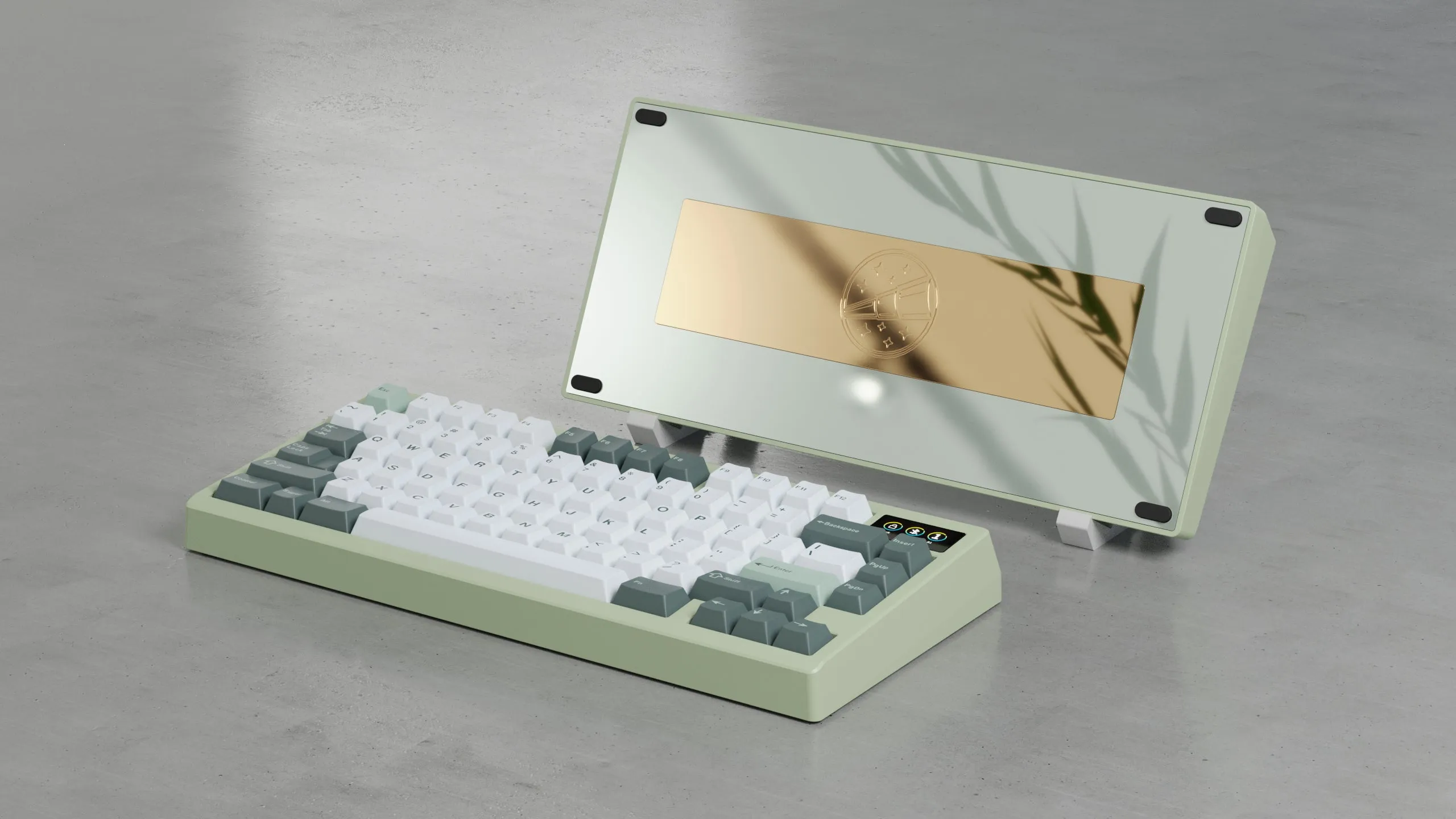

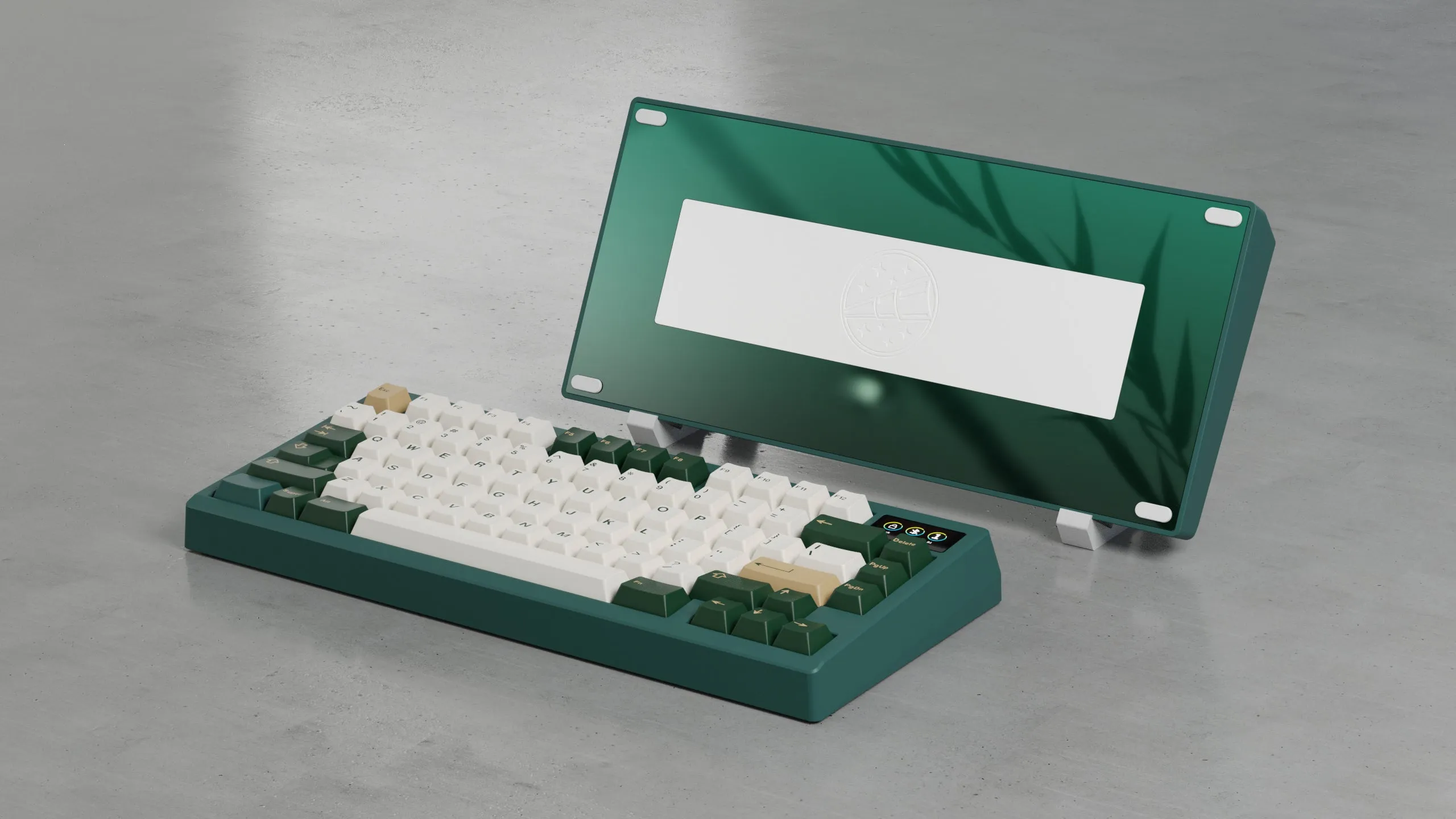

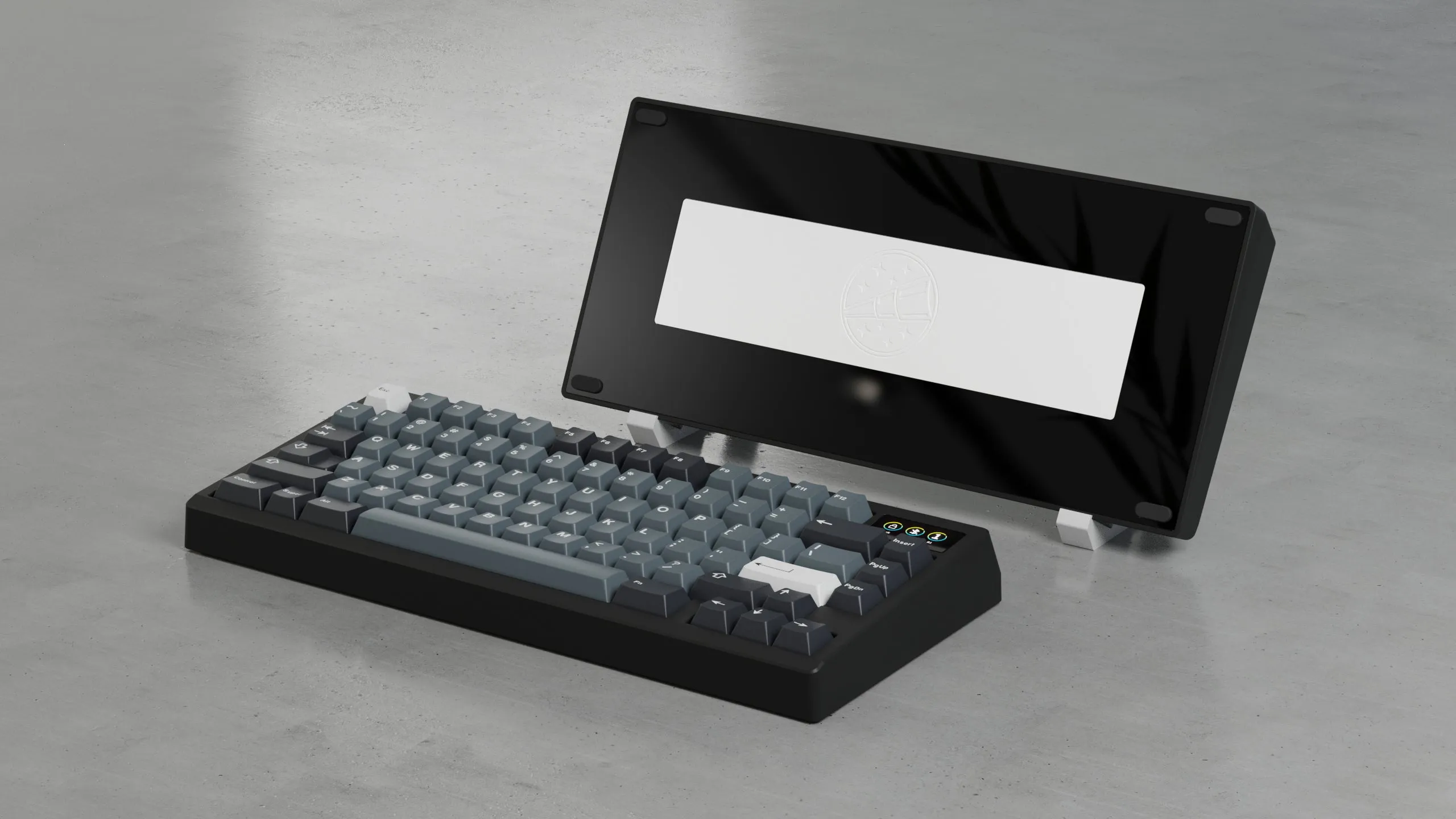

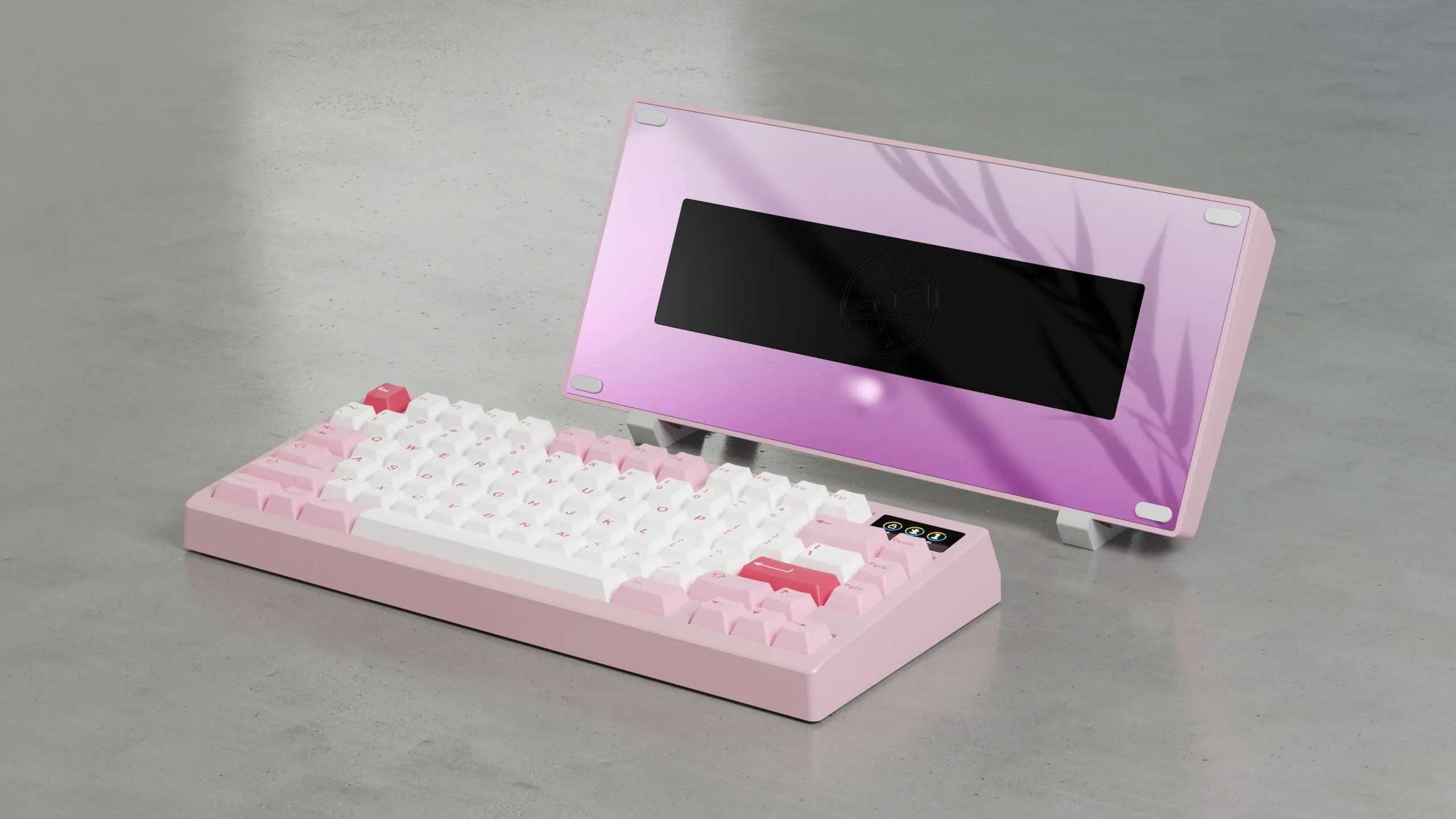

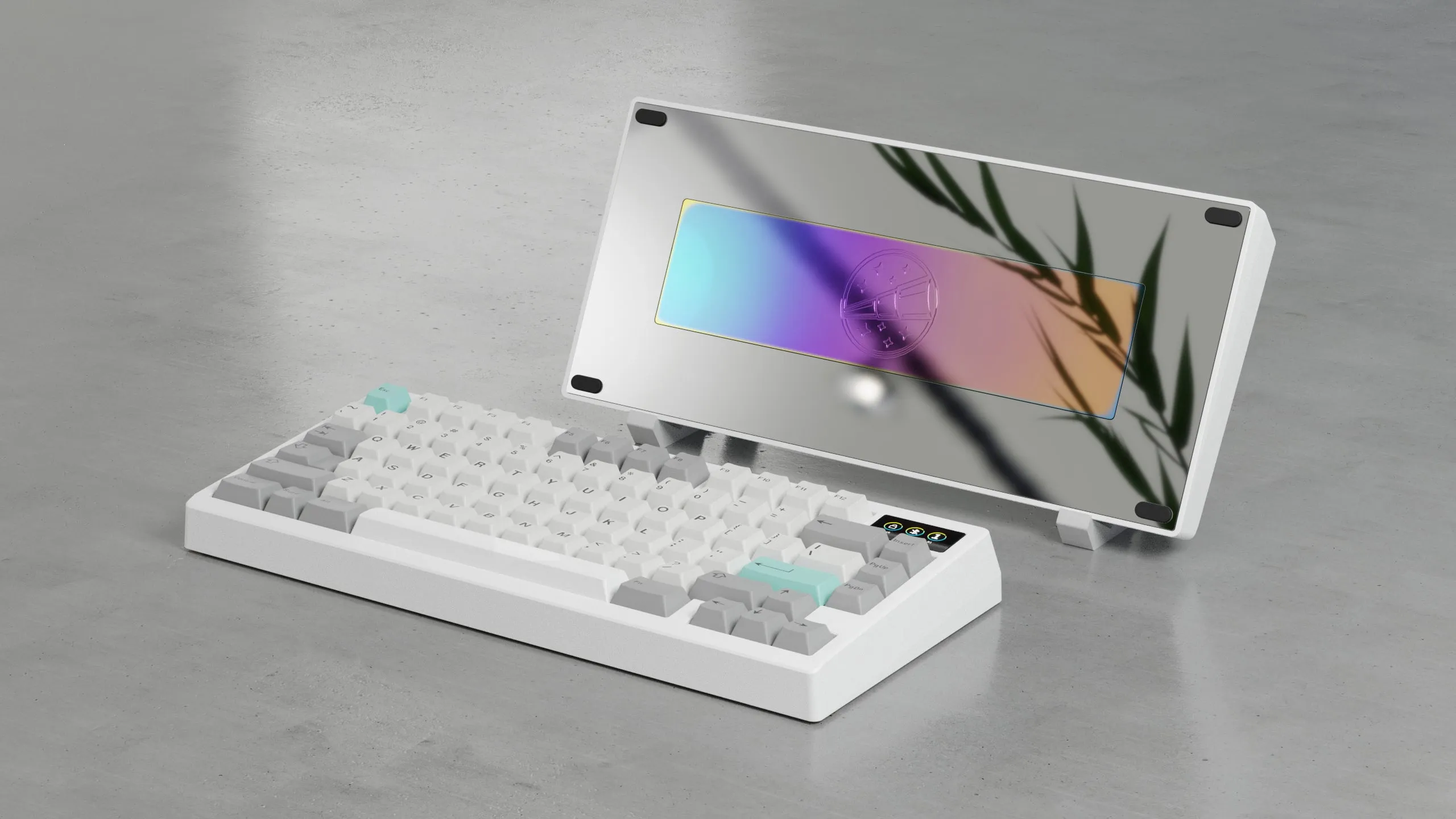

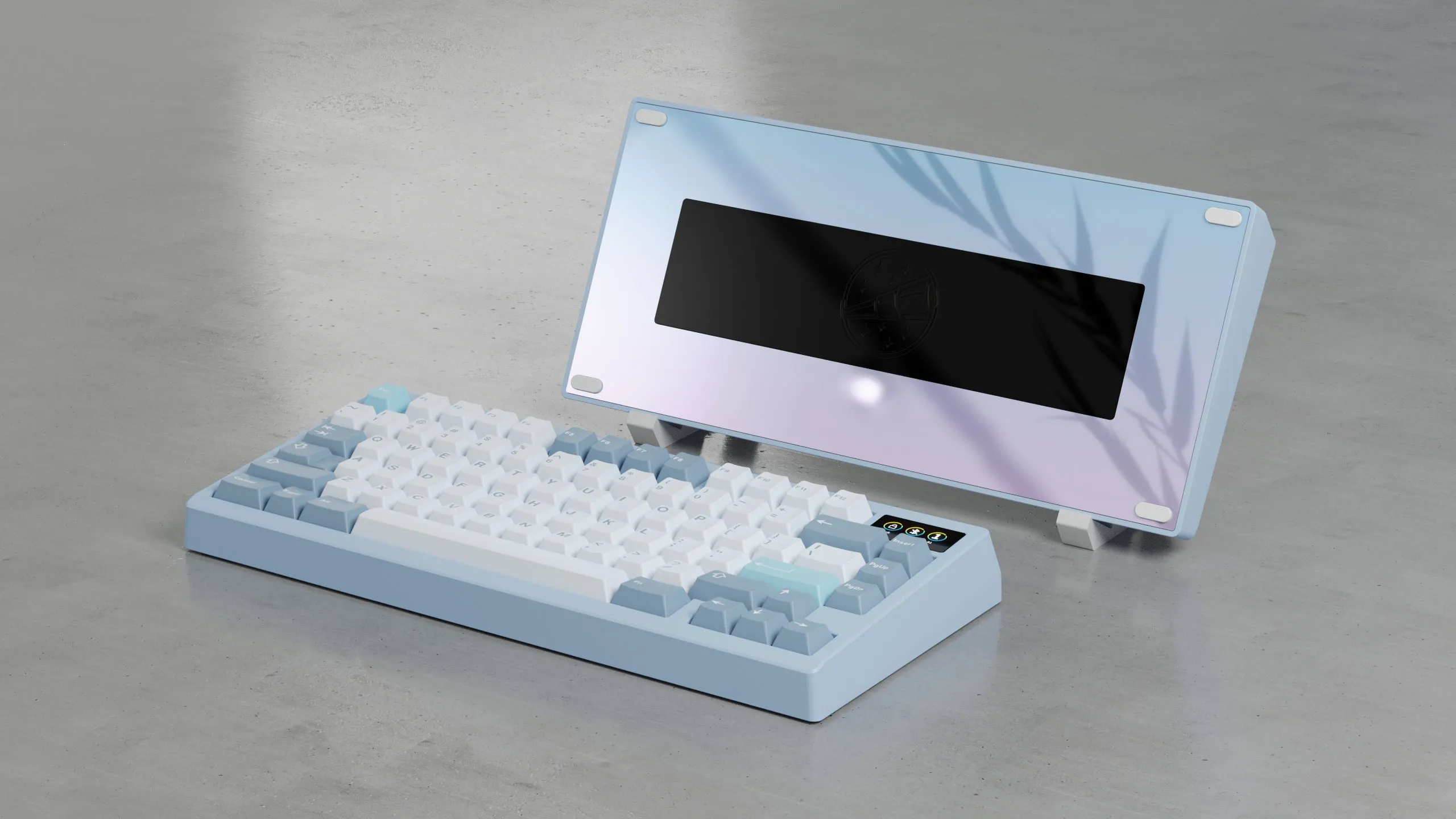

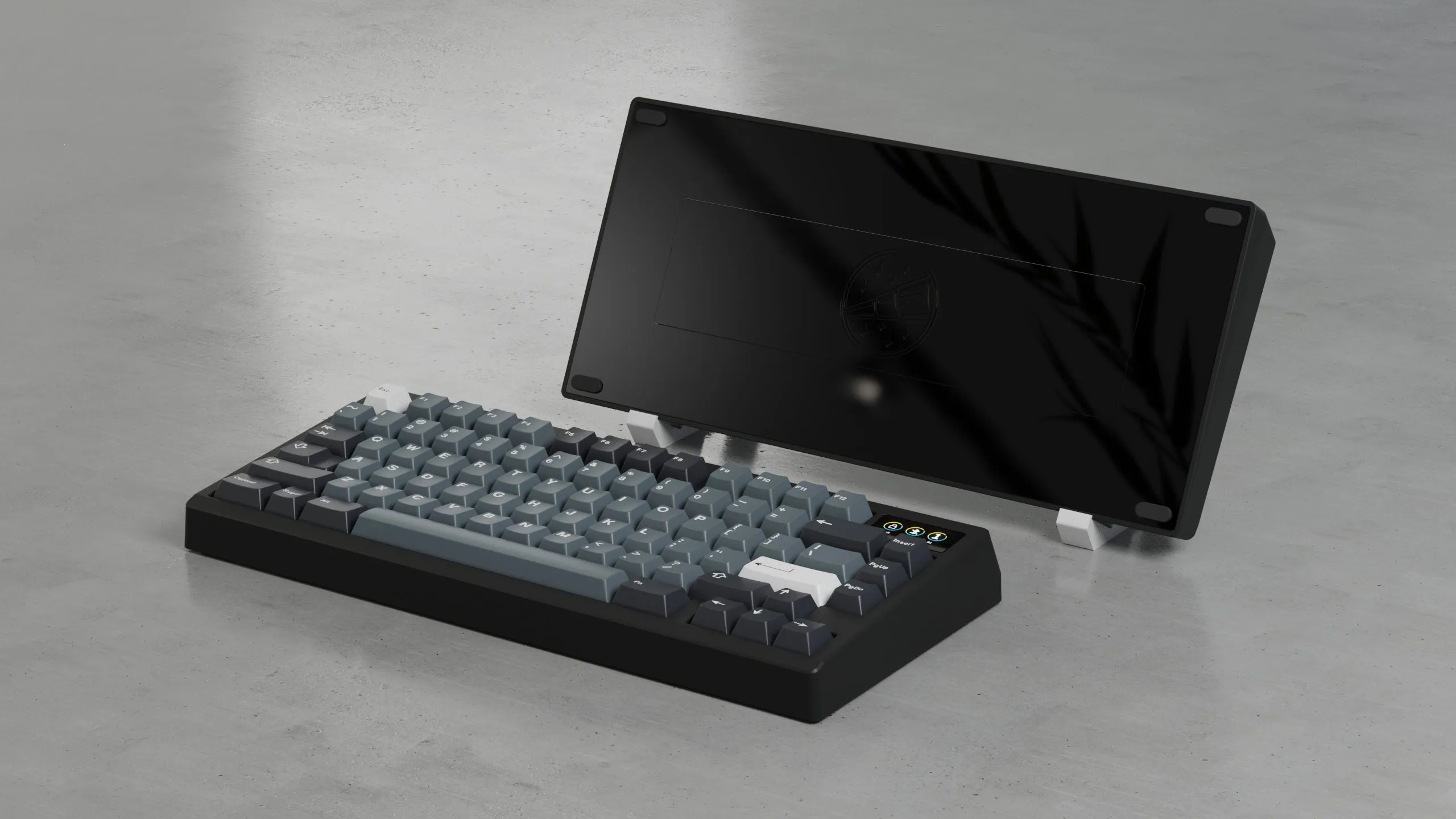

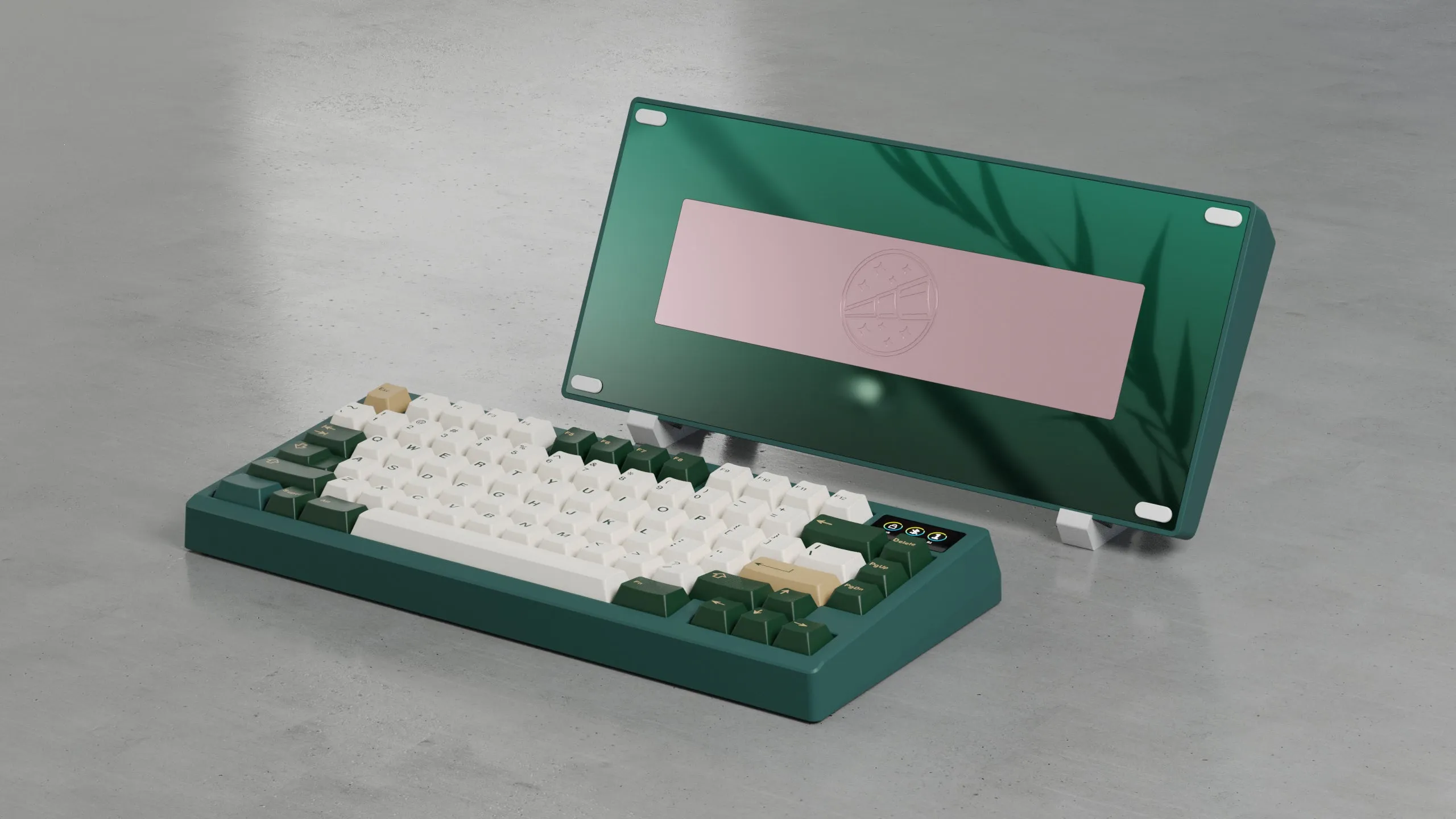

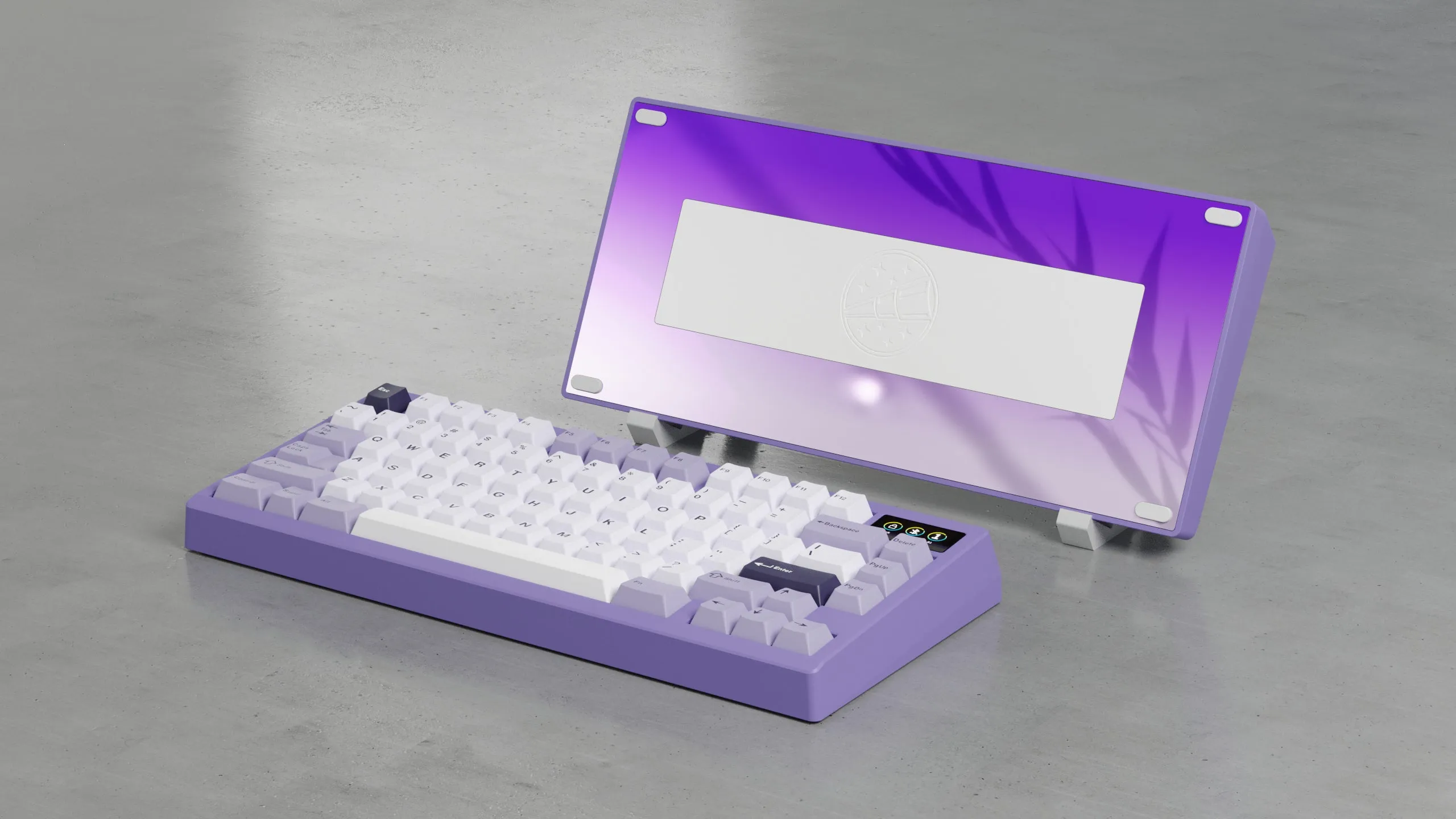

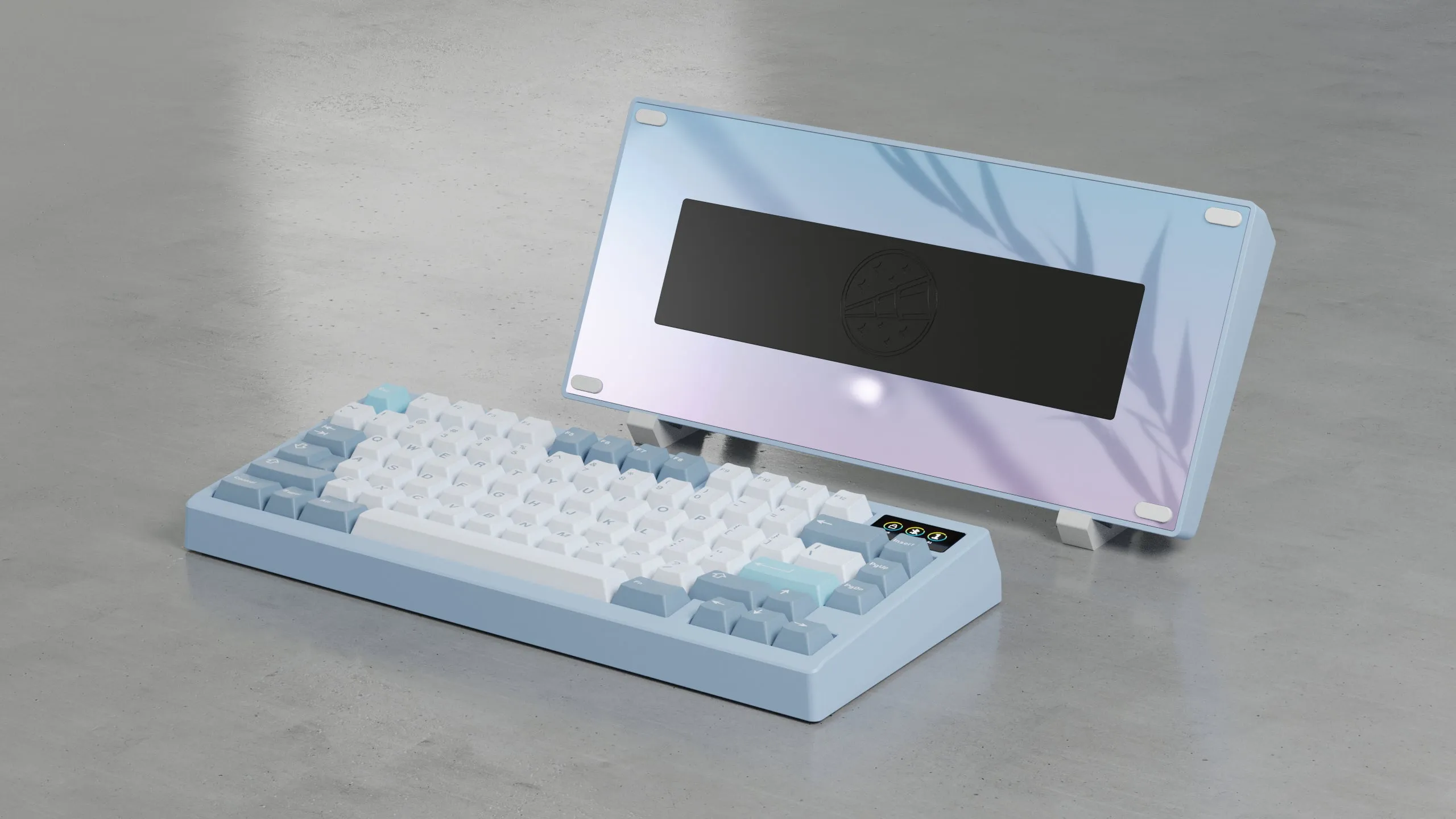

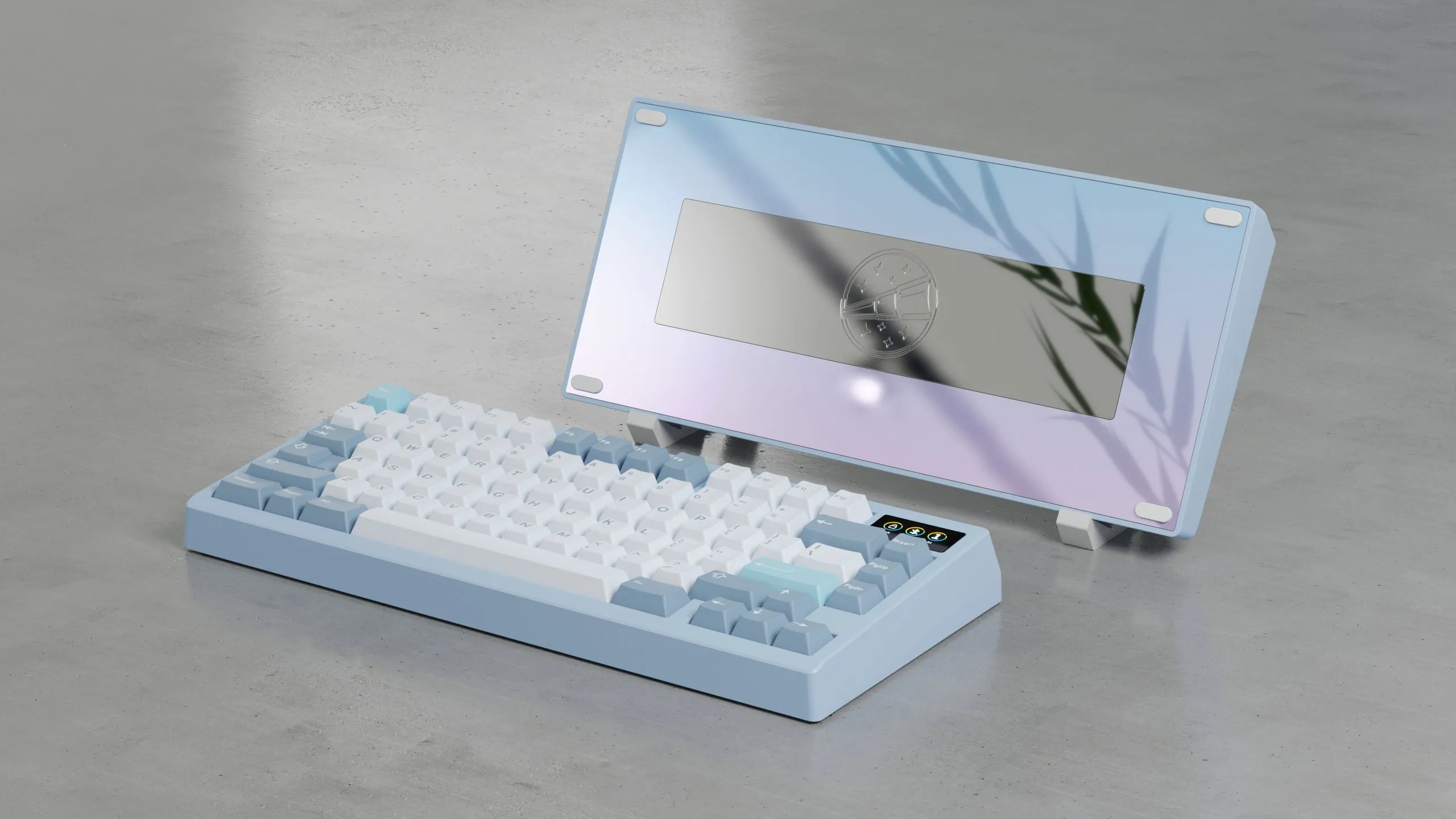

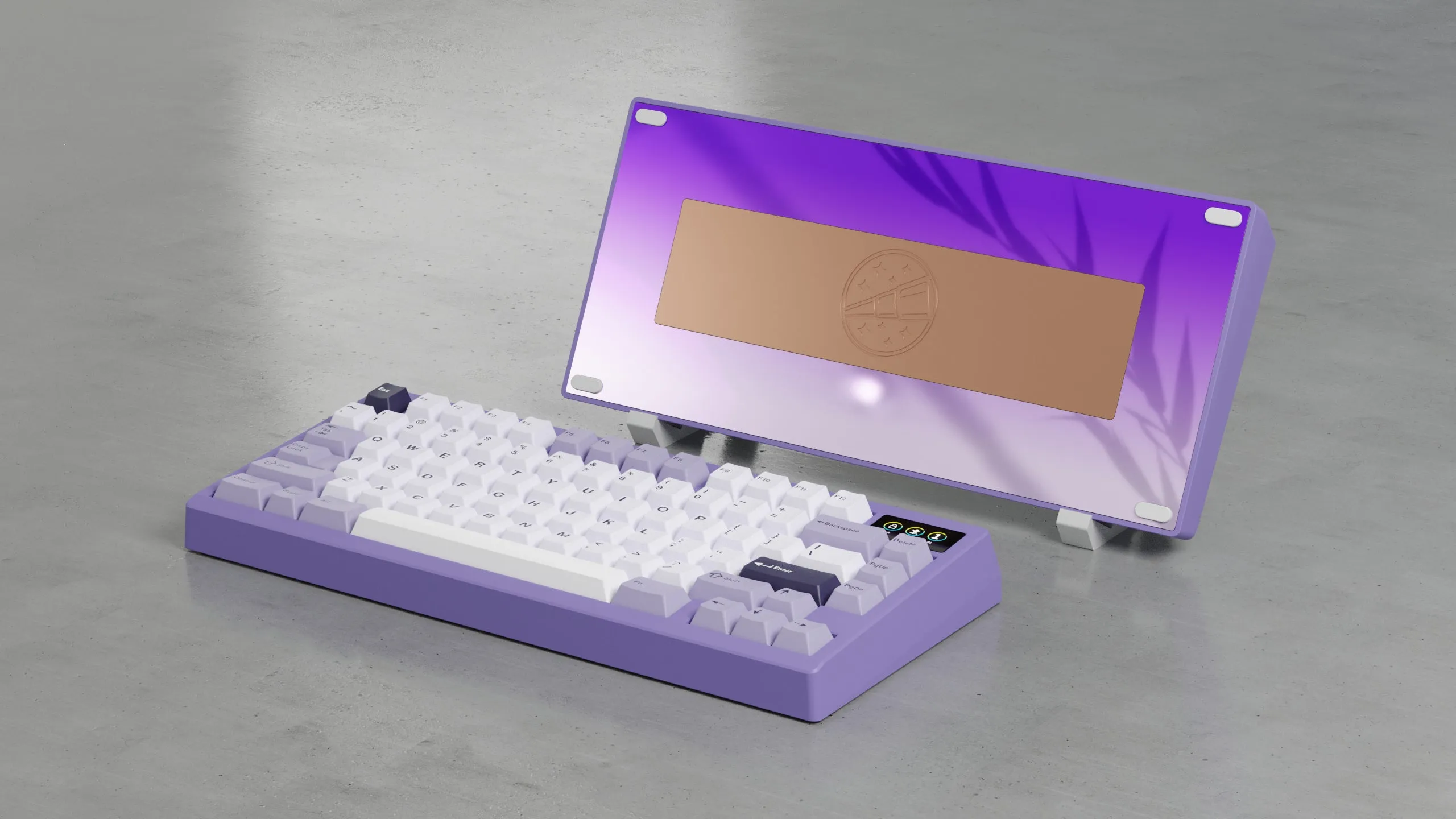

Name: [Pre-order] Zoom75 Essential Edition - June 2024 Batch
SKU: 477285

Product Details ＋

Pre-order date: until sold out
Estimated Delivery: December 2024

Meletrix are at it again just before the end of financial year. This is also the first edition that comes with the LCD screen by default instead of the knob module as previously.

To explore the endless colour combinations, check out the .

Specification:

Gasket mount design
75% Layout
PCB: 1.2mm, with Ai03 DB
5° Typing angle
22.14 mm front height
Dimension: 323.6 x 145.78 x 34.73 (mm)
Finish treatment: electrostatic coated, anodized, E-white, nano coated（GT Silver only)
Default plate: PC
Zoom75 Bluetooth PCB polling rate: 125hz
Zoom 75 2.4GHz Polling Rate: 1000hz
Zoom 75 Wired Polling Rate: 1000hz
Bluetooth PCB can be used in wired or wireless mode.
Tri-mode PCB support VIA. Wired PCB support QMK, not VIA.
Essential kit with Alu knob / weight / Glass Mirror Back Plate: 1.74 kg
Essential kit with brass knob / PVD SS weight / Glass Mirror Back Plate: 2.03kg
Essential kit with Alu knob / weight /PVD Back Plate: 1.87 kg
Essential kit with brass knob / PVD SS weight / PVD Back Plate: 2.15 kg
Internal Stainless Steel Weight: 0.358 kg

Kit Contents:

Aluminum top & bottom case of buyer's choice
Aluminum / SS external weight of buyer's choice
Aluminum / brass rotary knob matching the external weight.
Backplate of the same case color
2U LCD Module
Tri-mode Flex Cut Or Non-Flex Cut Hotswap RGB PCB - Hot-swap, multi-layout Bluetooth /VIA PCB with per-key RGB
Daughterboard/JST cable
Flexible Flat Cable ( 2 pcs )
Polycarbonate plate
Gasket Sleeves
Set of WS Stabilizers V3 （TPU) （Mass production stabs maybe different from prototypes'）
Li-ion battery (2 pcs) （2250 mAh）
Coiled USB-C cable
Poron Dampener kit
Silicone keyboard feet
Screws and other installation tools and accessories
2.4G USB Receiver
Storage case
