Note: Full flange-to-flange three-year warranty on all 00 Series circulators.

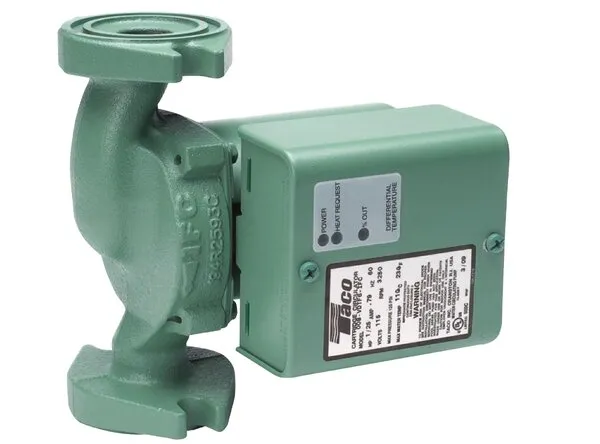

The Taco 007-VSF5-2IFC is a variable speed outdoor reset circulator. Its all-in-one design combines a microprocessor based controller with the Taco 00 cartridge circulators. The setpoint version of the variable speed circulators is very versatile and can be installed in a variety of manners: to deliver a constant temperature, maintain a specific temperature drop between two sensor locations, and can be used as a bypass/shunt pump or integrated into a fan coil package to adjust the pump speed depending on the temperature of the supply air. The 007-VSF5-2IFC can be configured as either direct acting (speed increases on a temperature decrease) or reverse acting (speed increases on a temperature increases). This unit can also be installed in a radiant injection mixing system which requires a constant supply of water temperature.

Features:

• All-in-One Pump / Control
• Sensors Included
• Easy to Wire
• UL Approved
• Snap-in PC Board
• Fuse Protected
• Plug-in Low Voltage Wiring Terminal
• LED Status Panel
• Direct or Reverse Acting
• Selectable Output Response Speed
• Linear or Logarithmic Output
• Pump Exercise (10 Seconds After 3 Days of No Operation)
